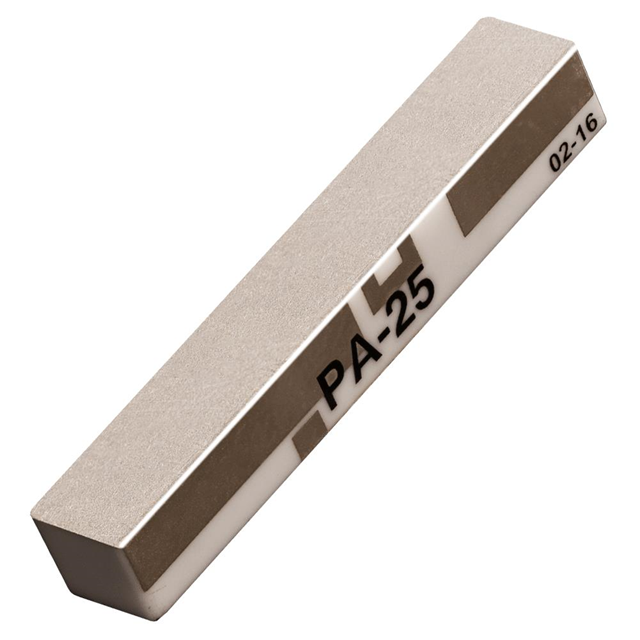

PA.25A

Manufacturer :

Taoglas

Product Category :

RF Antennas

JESD-609 Code :

e4

Mount :

Surface Mount

Terminal Finish :

Gold (Au)

RoHS Status :

ROHS3 Compliant

Frequency (Center/Band) :

850MHz 900MHz 1.7GHz 1.8GHz 1.9GHz 2.1GHz

Height :

5.9944mm

VSWR :

3

Return Loss :

-6.4dB, -12.7dB, -10.8dB, -13.5dB

Frequency Range :

824MHz~960MHz 1.7GHz~2.17GHz

Mounting Type :

Surface Mount

Termination :

Solder

Applications :

CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA

Package / Case :

SMD/SMT

Impedance :

50Ohm

Packaging :

Tape and Reel (TR)

Frequency :

2.17GHz

Omnidirectional :

No

Antenna Type :

Chip

RF/Microwave Device Type :

MOBILE STATION ANTENNA

Series :

Anam

Min Operating Temperature :

-40°C

Construction :

COMPONENT

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Length :

35mm

RF Family/Standard :

Cellular

Polarization :

Linear

Lead Free :

Lead Free

Frequency Group :

Wide B

Max Operating Temperature :

105°C

Gain :

1.49dBi, 1.76dBi, 2.4dBi, 2.53dBi, 2.46dBi, 4.62dBi

Number of Bands :

6

Factory Lead Time :

8 Weeks

Width :

6mm
