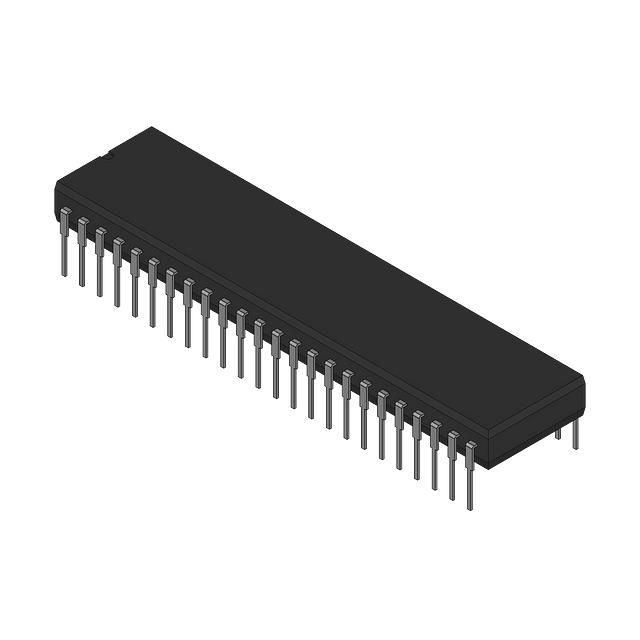

P82C08-8
Or copy the link below:
- Mfr.Part #
- P82C08-8
- Manufacturer
- Altera (Intel)
- Package / Case
- Datasheet
- Download
- Description
- DRAM CONTROLLER, 1M X 8 PDIP48
- Stock
- 1,008
- In Stock ：
- 1,008
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Altera (Intel)
- Product Category :
- Controllers
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Number of Terminals :
- 48
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Power Supplies :
- 5V
- Clock Frequency :
- 8MHz
- Low Power Mode :
- yes
- Memory Organization :
- 1M x 8
- Additional Feature :
- 5 PROGRAMMABLE REFRESH MODES
- Operating Temperature (Max) :
- 70°C
- Pin Count :
- 48
- Supply Current-Max :
- 26mA
- RoHS Status :
- Non-RoHS Compliant
- Terminal Pitch :
- 2.54mm
- HTS Code :
- 8542.31.00.01
- Supply Voltage-Max (Vsup) :
- 5.5V
- Seated Height-Max :
- 5.08mm
- JESD-30 Code :
- R-PDIP-T48
- Bus Compatibility :
- IAPX86; IAPX88; IAPX186; IAPX188
- uPs/uCs/Peripheral ICs Type :
- MEMORY CONTROLLER, DRAM
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Terminal Form :
- THROUGH-HOLE
- Length :
- 61.79mm
- Supply Voltage-Min (Vsup) :
- 4.5V
- Supply Voltage :
- 5V
- Number of Banks :
- 2
- Surface Mount :
- No
- JESD-609 Code :
- e0
- Width :
- 15.24mm
- Terminal Position :
- Dual
- Boundary Scan :
- No
- Qualification Status :
- Not Qualified
- Address Bus Width :
- 18
- Temperature Grade :
- COMMERCIAL
- Datasheets
- P82C08-8
[Controllers Altera (Intel) P82C08-8] Overview
Introducing the cutting-edge P82C08-8 DRAM Controller by Altera, a game-changer in integrated circuit technology. Meticulously crafted to meet the demanding requirements of modern electronic systems, this controller offers unparalleled performance and reliability. Designed with precision and expertise, it serves as the cornerstone for efficient data management in a variety of applications.
With its robust design and advanced features, the P82C08-8 is poised to revolutionize the way data is handled in electronic devices. Whether in industrial settings or consumer electronics, its versatility and performance make it the ideal choice for engineers and designers seeking to optimize their systems.
P82C08-8 Features
- Highly Efficient DRAM Controller: Provides seamless integration with dynamic random-access memory (DRAM), ensuring smooth data flow and rapid access times.
- 1M X 8 Configuration: Offers ample storage capacity with a configuration of 1 megabyte by 8 bits, catering to the needs of data-intensive applications.
- PDIP48 Package: Delivered in a convenient PDIP48 package, facilitating easy installation and integration into existing circuit designs.
- Reliable Performance: Engineered for reliability, the P82C08-8 operates flawlessly even in demanding environments, delivering consistent performance under varying conditions.
- Low Power Consumption: Optimized for energy efficiency, minimizing power consumption without compromising on performance, ideal for battery-powered devices and energy-conscious applications.
- Flexible Configuration Options: Offers flexible configuration options to adapt to diverse system requirements, providing engineers with the flexibility to tailor their designs for specific applications.
P82C08-8 Applications
- Industrial Automation Systems: The P82C08-8 serves as a vital component in industrial automation systems, facilitating efficient data storage and retrieval in manufacturing processes. Its high-performance capabilities ensure smooth operation in demanding industrial environments.
- Embedded Systems: Ideal for use in embedded systems, the P82C08-8 enables seamless integration with microcontrollers and other embedded components, providing reliable data management for a wide range of applications such as IoT devices and automotive electronics.
- Telecommunications Equipment: In telecommunications equipment, the P82C08-8 plays a crucial role in managing data traffic and ensuring high-speed communication. Its low power consumption makes it well-suited for telecom infrastructure deployed in remote or energy-constrained locations.
- Medical Devices: Trusted for its reliability and performance, the P82C08-8 finds applications in medical devices where precision and accuracy are paramount. From patient monitoring systems to diagnostic equipment, it enables seamless data processing and storage, contributing to the advancement of healthcare technology.
