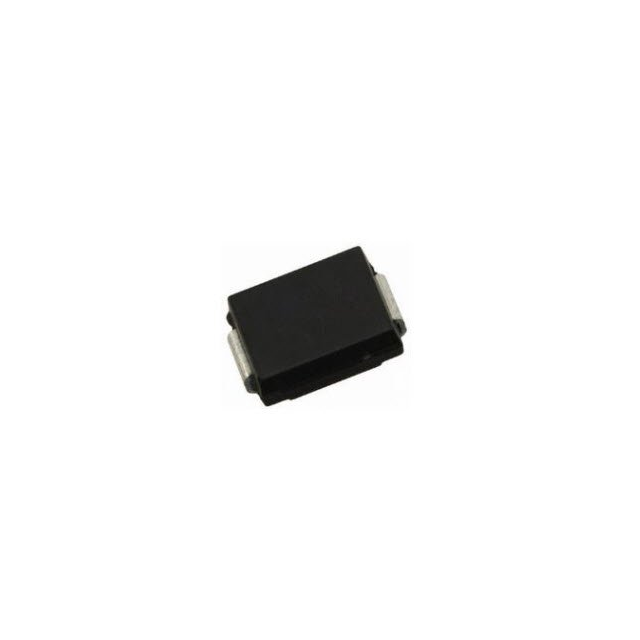

P6SMB9.1CA

Manufacturer :

Meritek

Product Category :

Power Line Protection :

No

Applications :

GENERAL PURPOSE

Rep Pk Reverse Voltage-Max :

7.78V

ECCN Code :

EAR99

Mounting Type :

Surface Mount

Number of Terminations :

2

Base Part Number :

P6SMB

Terminal Position :

Dual

Mount :

Surface Mount

Clamping Voltage :

125V

Peak Reflow Temperature (Cel) :

260

Operating Temperature :

-55°C~150°C TJ

Time@Peak Reflow Temperature-Max (s) :

30

Configuration :

Single

Packaging :

Tape and Reel (TR)

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Reverse Standoff (Typ) :

7.78V

Polarity :

Bidirectional

Reverse Standoff Voltage :

77.8V

Bidirectional Channels :

1

Terminal Form :

C BEND

Factory Lead Time :

14 Weeks

Diode Element Material :

SILICON

Voltage - Breakdown (Min) :

8.65V

Number of Elements :

1

JESD-30 Code :

R-PDSO-C2

Peak Pulse Power :

600W

Package / Case :

DO-214AA, SMB

Peak Pulse Current :

4.9A

Current - Peak Pulse (10/1000μs) :

45.5A

Voltage - Clamping (Max) @ Ipp :

13.4V

Type :

Zener
