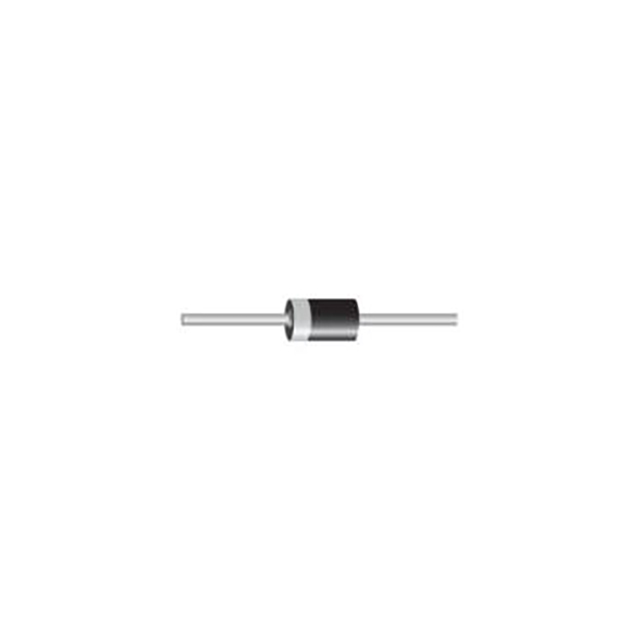

P6KE33A

Manufacturer :

Meritek

Product Category :

Number of Elements :

1

Termination :

Axial

Lead Free :

Lead Free

Terminal Form :

Wire

Factory Lead Time :

19 Weeks

Power Rating :

600W

Leakage Current :

1μA

Published :

2011

Clamping Voltage :

45.7V

Breakdown Voltage :

31.4V

Diode Element Material :

SILICON

RoHS Status :

ROHS3 Compliant

Peak Pulse Current :

13.3A

Additional Feature :

UL RECOGNIZED

Case Connection :

Isolated

Pin Count :

2

Applications :

GENERAL PURPOSE

Mount :

Through Hole

Voltage - Rated DC :

33V

ECCN Code :

EAR99

Max Surge Current :

13.2A

Peak Pulse Power :

600W

Power Line Protection :

No

Time@Peak Reflow Temperature-Max (s) :

30

Reverse Standoff Voltage :

28.2V

Number of Terminations :

2

Number of Pins :

2

Diameter :

3.6mm

Reverse Breakdown Voltage :

31.4V

Configuration :

Single

Series :

P6KE

Peak Reflow Temperature (Cel) :

260

Polarity :

Unidirectional

Test Current :

1mA

Power Dissipation-Max :

5W

Operating Temperature :

-55°C~175°C TJ

Package / Case :

DO-204AC, DO-15, Axial

Mounting Type :

Through Hole

JESD-609 Code :

e3

Length :

7.6mm

Operating Supply Voltage :

28.2V

Packaging :

Bulk

Terminal Finish :

Matte Tin (Sn)

Voltage - Clamping (Max) @ Ipp :

45.7V

Type :

Zener

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

No
