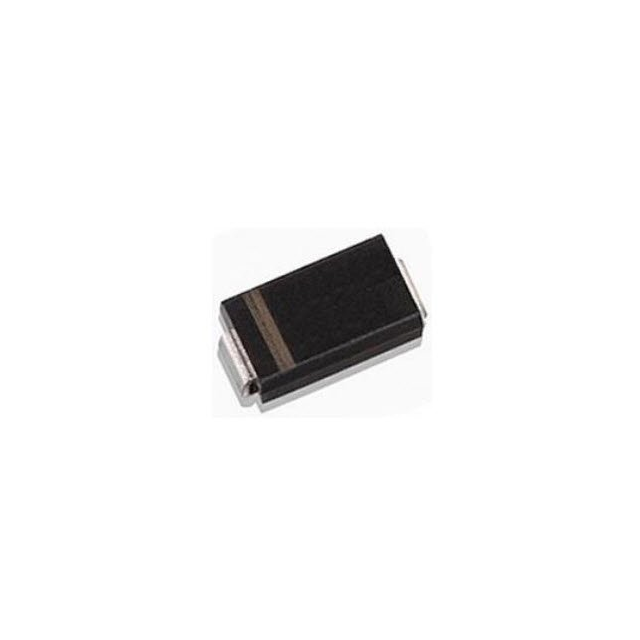

P4SMA91A

Manufacturer :

Meritek

Product Category :

Terminal Position :

Dual

Packaging :

Tape and Reel (TR)

Number of Elements :

1

Type :

Zener

Configuration :

Single

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

JESD-30 Code :

R-PDSO-C2

Time@Peak Reflow Temperature-Max (s) :

30

Number of Terminations :

2

Diode Element Material :

SILICON

Reverse Standoff Voltage :

7.78V

Clamping Voltage :

13.4V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Breakdown (Min) :

8.65V

RoHS Status :

ROHS3 Compliant

Polarity :

Unidirectional

Voltage - Reverse Standoff (Typ) :

7.78V

Unidirectional Channels :

1

Peak Pulse Power :

400W

Terminal Form :

C BEND

Package / Case :

DO-214AC, SMA

Power Line Protection :

No

Peak Pulse Current :

30.6A

JESD-609 Code :

e3

Mount :

Surface Mount

Operating Temperature :

-55°C~150°C TJ

Applications :

GENERAL PURPOSE

Base Part Number :

P4SMA

Factory Lead Time :

14 Weeks

Terminal Finish :

Matte Tin (Sn)

Current - Peak Pulse (10/1000μs) :

30.6A

ECCN Code :

EAR99
