P4SMA300C

Manufacturer :

Diotec Semiconductor

Product Category :

RoHS Status :

ROHS3 Compliant

Peak Reflow Temperature (Cel) :

260

Pbfree Code :

No

Lead Free :

Lead Free

Direction :

Bidirectional

Mount :

Surface Mount

Reverse Standoff Voltage :

256V

Termination :

SMD/SMT

Power Rating :

400W

Power Dissipation :

400W

Test Current :

1mA

Peak Pulse Current :

1A

Factory Lead Time :

18 Weeks

Width :

2.79mm

Terminal Form :

C BEND

Clamping Voltage :

414V

Breakdown Voltage :

285V

Operating Supply Voltage :

256V

Terminal Position :

Dual

Additional Feature :

UL RECOGNIZED

Applications :

GENERAL PURPOSE

Terminal Finish :

Matte Tin (Sn)

Max Breakdown Voltage :

315V

Series :

P4SMA

JESD-609 Code :

e3

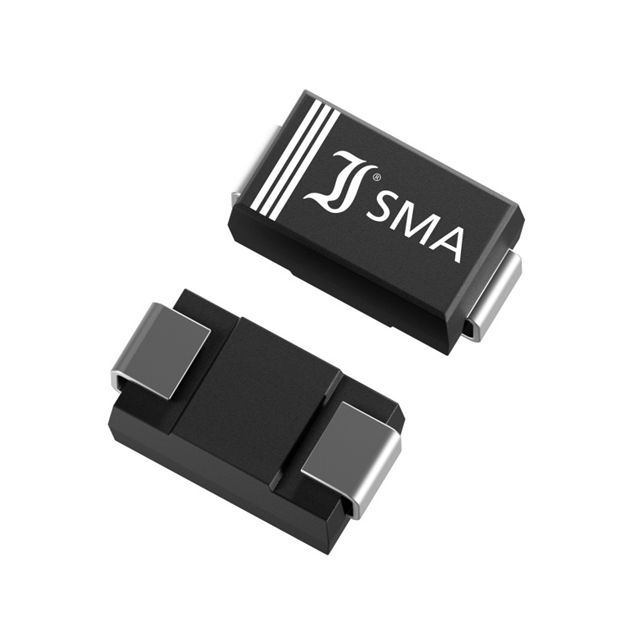

Package / Case :

DO-214AC, SMA

Leakage Current :

5μA

Pin Count :

2

Reverse Breakdown Voltage :

285V

Number of Elements :

1

Diode Element Material :

SILICON

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2009

Number of Terminations :

2

Peak Pulse Power :

400W

Time@Peak Reflow Temperature-Max (s) :

40

Height :

2.29mm

Voltage - Rated DC :

300V

Voltage - Clamping (Max) @ Ipp :

414V

Mounting Type :

Surface Mount

Operating Temperature :

-65°C~150°C TJ

Length :

5.28mm

Configuration :

Single

Number of Channels :

1

Bidirectional Channels :

1

Power Line Protection :

No

Type :

Zener

ECCN Code :

EAR99

Packaging :

Tape and Reel (TR)

Number of Pins :

2

Max Surge Current :

1A
