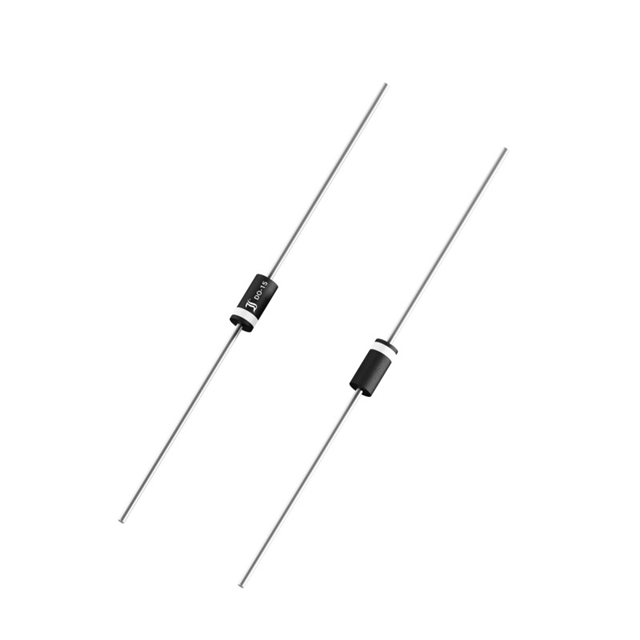

P4KE11CA

Manufacturer :

Diotec Semiconductor

Product Category :

Polarity :

Bidirectional

Additional Feature :

UL RECOGNIZED

Max Surge Current :

26.3A

Time@Peak Reflow Temperature-Max (s) :

30

Pin Count :

2

Operating Temperature :

-55°C~175°C TJ

Mounting Type :

Through Hole

Pbfree Code :

No

Terminal Finish :

Matte Tin (Sn)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Through Hole

RoHS Status :

ROHS3 Compliant

Number of Channels :

1

Power Line Protection :

No

Package / Case :

DO-204AL, DO-41, Axial

Number of Terminations :

2

Breakdown Voltage :

10.5V

Termination :

Axial

Bidirectional Channels :

1

Packaging :

Bulk

Case Connection :

Isolated

Operating Supply Voltage :

9.4V

Factory Lead Time :

19 Weeks

Reverse Standoff Voltage :

9.4V

Peak Pulse Power :

400W

Series :

P4KE

JESD-30 Code :

O-PALF-W2

Peak Pulse Current :

26.3A

Peak Reflow Temperature (Cel) :

260

Terminal Form :

Wire

JESD-609 Code :

e3

Configuration :

Single

Number of Elements :

1

Clamping Voltage :

15.6V

ECCN Code :

EAR99

Voltage - Clamping (Max) @ Ipp :

15.6V

Published :

2011

Diode Element Material :

SILICON

Type :

Zener

Applications :

GENERAL PURPOSE
