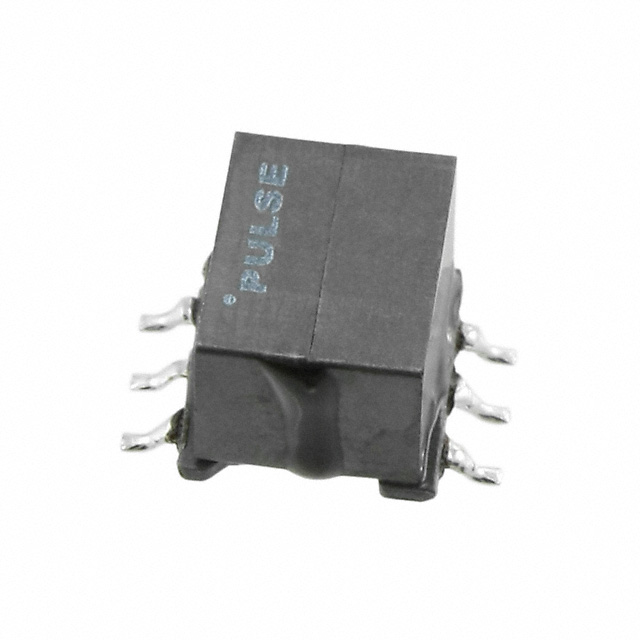

P1597NL

Manufacturer :

Pulse Electronics

Product Category :

Switching Converter, SMPS Transformers

Termination Style :

SMD/SMT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Manufacturer :

Pulse

Operating Temperature :

-40°C~125°C

Voltage - Auxiliary :

-

Subcategory :

Transformers

Intended Chipset :

LTC1535

Applications :

Isolation

Type :

For DC/DC Converters

Product Height (mm) :

9(mm)

Mount :

Surface Mount

Product Type :

Audio and Signal Transformers

Mounting Type :

Surface Mount

Pin Count :

6

Isolation Voltage :

2 kV

Primary Configuration :

Single

Packing Method :

Tube

Mounting :

Surface Mount

Physical Dimension :

L13.0XB11.5XH9.0 (mm)

Number of Secondary Winding :

1

Lead/Base Style :

Gull wing

Depth :

10.6mm

Height Seated (Max) :

0.354 9.00mm

Number of Pins :

6

Number of Primary Winding :

1

ECCN Code :

EAR99

Transformer Type :

POWER TRANSFORMER

Radiation Hardening :

No

Mounting Style :

Surface Mount

High Potential :

500 Vrms

Product Length (mm) :

11.5(mm)

Voltage - Primary :

-

Secondary Configuration :

Single

Series :

-

Operating Temperature Range :

- 40 C to + 125 C

Packaging :

Tray

Height - Seated (Max) :

0.354 (9.00mm)

Product :

Power Inductors

Size / Dimension :

0.453Lx0.339W 11.50mmx8.60mm

Voltage - Isolation :

2000Vrms

Turns Ratio - Primary:Secondary :

1:1.35

Inductance @ Frequency :

-

Product Status :

Active

Product Depth (mm) :

13(mm)

Operating Temp Range :

-40C to 125C

Package :

Tray

Published :

2007

Turns Ratio :

1:1.35:1.35

Lead Style :

Gull wing

Height :

9mm

Minimum Operating Temperature :

- 40 C

RoHS :

Details

Package / Case :

SMD/SMT

Width :

11.5mm

Factory Lead Time :

9 Weeks

Frequency :

-

Inductance :

578 μH

Maximum Operating Temperature :

+ 125 C

Product Category :

Pulse Transformers

RoHS Status :

RoHS Compliant

Element Configuration :

Single

Brand :

Pulse Electronics

Footprint :

0.453 L x 0.512 W (11.50mm x 13.00mm)

Chipset Manufacturer :

Linear Technology

Length :

13mm
