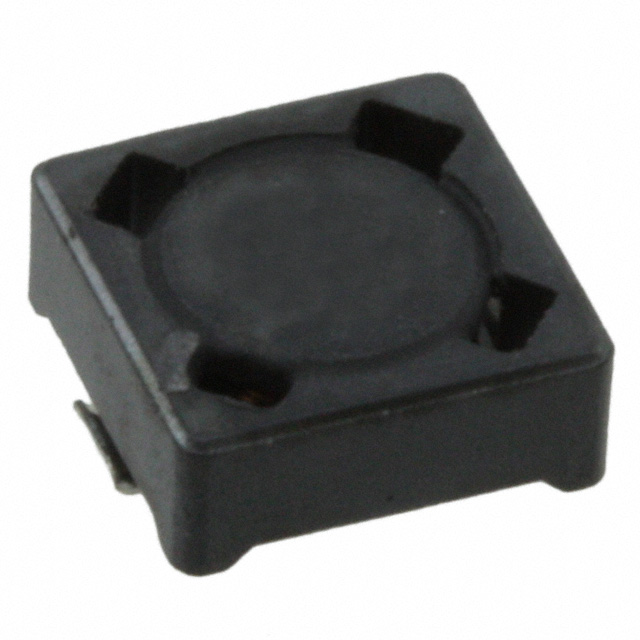

P1166.153NLT

Share

Or copy the link below:

Mfr.Part #
P1166.153NLT
Manufacturer
Pulse Electronics
Package / Case
Nonstandard
Datasheet
Download
Description
FIXED IND 15UH 1.4A 92 MOHM SMD
Stock
2,880
In Stock :
2,880

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Pulse Electronics
Product Category :
Fixed Inductors
Height - Seated (Max) :
0.138 (3.51mm)
DC Resistance :
0.092(ohm)
DC Current :
1.4A
Schedule B :
8504500000, 8504500000/8504500000/8504500000/8504500000/8504500000
Technology :
Wirewound
Terminal Shape :
ONE SURFACE
Package / Case :
Nonstandard
Operating Temperature :
-40°C~130°C
Frequency - Self Resonant :
22MHz
Maximum Operating Temperature :
+ 130 C
Max DC Current :
1.5A
Tolerance :
±20%
Radiation Hardening :
No
Package :
Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
Width :
7.54 mm
Series :
P1166NL
Test Frequency :
100kHz
Number of Terminations :
2
Shielding :
yes
Product Length :
7.54
HTS Code :
8504.50.80.00
Current Rating :
1.4A
Failure Rate :
Not Required
RMS Current (Irms) :
1.4 A
Minimum Operating Temperature :
- 40 C
Product Status :
Active
Subcategory :
Inductors, Chokes and Coils
Product Height (mm) :
3.51(mm)
Resistance :
92mOhm
ECCN Code :
EAR99
Max Operating Temperature :
130 °C
Size / Dimension :
0.297Lx0.297W 7.54mmx7.54mm
Current Rating (Amps) :
1.4 A
Inductance Frequency - Test :
100 kHz
Product Width :
7.54 mm
Features :
-
Terminal Placement :
DUAL ENDED
Depth :
7.54mm
RoHS :
Details
Product Depth (mm) :
7.54(mm)
Product Type :
Fixed Inductors
Type :
Wirewound
Case/Size Code :
3030
Reference Standard :
AEC-Q200
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
DC Resistance (DCR) :
92mOhm Max
Application :
Power
Factory Lead Time :
11 Weeks
Number of Terminals :
2
Self Resonant Frequency :
22(MHz)
Packaging :
Tape and Reel (TR)
Height :
3.51mm
Min Operating Temperature :
-40 °C
Current - Saturation (Isat) :
1.5A
Number of Functions :
1
Mount :
Surface Mount
Height Seated (Max) :
0.138 3.51mm
Termination :
SMD/SMT
Packing Method :
TR
Composition :
Wirewound
Diameter :
-
Length :
7.54 mm
Brand :
Pulse Electronics
Pbfree Code :
yes
Product :
Power Inductors
Product Diameter (mm) :
Not Required(mm)
Impedance :
Not Required(ohm)
Core Type :
Drum
Operating Temp Range :
-40C to 130C
Military Standard :
Not
Product Length (mm) :
7.54(mm)
Inductance Tolerance :
20
Q @ Freq :
-
Rad Hardened :
No
Inductance :
15μH
Supplier Device Package :
-
Manufacturer :
Pulse
Mounting Style :
PCB Mount
Material - Core :
-
Mounting Type :
Surface Mount
Saturation Current :
1.5 A
RoHS Status :
RoHS Compliant
Product Category :
Power Inductors - SMD
Termination Style :
SMD/SMT
Ratings :
-
Tolerance (+ or -) :
20%
Shape/Size Description :
RECTANGULAR PACKAGE
Inductor Application :
POWER INDUCTOR
Introducing Fixed Inductors Pulse Electronics P1166.153NLT from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:Nonstandard, Operating Temperature:-40°C~130°C, Number of Terminations:2, Type:Wirewound, Mounting Type:Surface Mount, P1166.153NLT pinout, P1166.153NLT datasheet PDF, P1166.153NLT amp .Beyond Fixed Inductors Pulse Electronics P1166.153NLT ,we also offer 744029002, 74479887310A, 744025100, Our vast inventory has you covered. Contact us now for immediate solutions.
