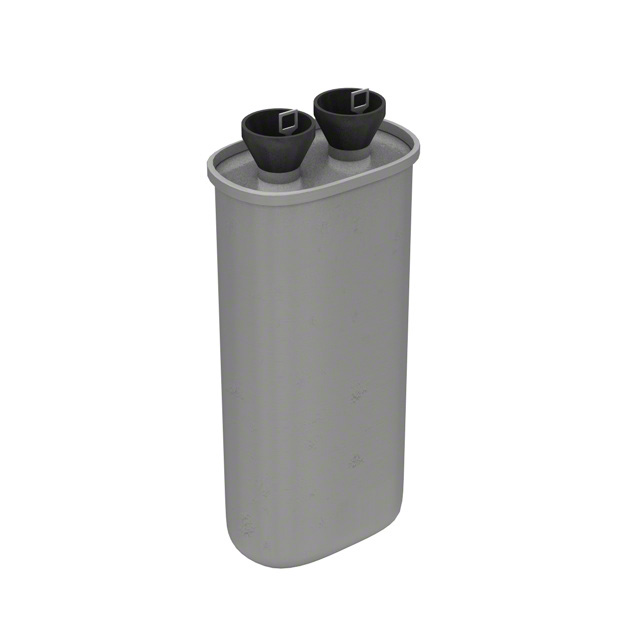

OTBH305KNPIR-F
Or copy the link below:
- Mfr.Part #
- OTBH305KNPIR-F
- Manufacturer
- Cornell Dubilier Electronics
- Package / Case
- Radial, Can
- Datasheet
- Download
- Description
- CAP FILM 3UF 10% 1.5KVDC RADIAL
- Stock
- 26,525
- In Stock ：
- 26,525
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cornell Dubilier Electronics
- Product Category :
- Film Capacitors
- Height :
- 1.31mm
- Series :
- OTB
- Published :
- 2013
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Capacitor Type :
- FILM CAPACITOR
- Tolerance :
- ±10%
- Size / Dimension :
- 2.160Lx1.310W 54.86mmx33.27mm Lip
- Width :
- 33.274mm
- Dielectric Material :
- Paper, Metallized
- Terminal Shape :
- Lug
- Applications :
- DC Link, DC Filtering; Motor Run
- Length :
- 54.864mm
- Rated (DC) Voltage (URdc) :
- 1500V
- Operating Temperature :
- -55°C~85°C
- Number of Terminations :
- 2
- Lead Pitch :
- 20.574mm
- RoHS Status :
- ROHS3 Compliant
- Height Seated (Max) :
- 4.370 111.00mm
- Capacitance :
- 3µF
- Factory Lead Time :
- 12 Weeks
- ECCN Code :
- EAR99
- JESD-609 Code :
- e3
- Voltage - Rated DC :
- 1.5kV
- Terminal Finish :
- Tin (Sn)
- Mount :
- Chassis Mount
- Additional Feature :
- RATED AC VOLTAGE (V): 660
- Mounting Type :
- Chassis Mount, Requires Holder/Bracket
- Termination :
- Solder Lug
- Lead Free :
- Lead Free
- Pbfree Code :
- yes
- Lead Spacing :
- 0.810 20.57mm
- Voltage - Rated AC :
- 660V
- Packaging :
- Bulk
- Package / Case :
- Radial, Can
- HTS Code :
- 8532.25.00.10
- Datasheets
- OTBH305KNPIR-F
