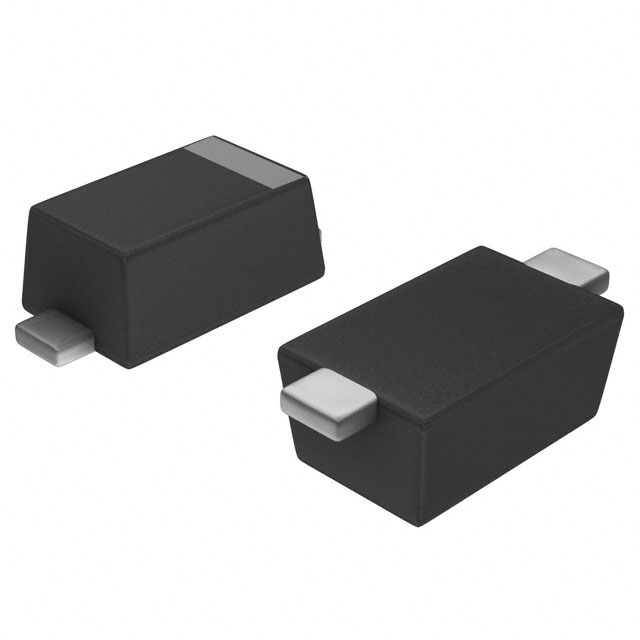

NZH24C,115
Or copy the link below:
- Mfr.Part #
- NZH24C,115
- Manufacturer
- NXP Semiconductors
- Package / Case
- SOD-123F
- Datasheet
- Download
- Description
- DIODE ZENER 24V 500MW SOD123F
- Stock
- 2,968
- In Stock ：
- 2,968
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NXP Semiconductors
- Product Category :
- Unclassified
- Power Dissipation :
- 500mW
- Pin Count :
- 2
- Polarity :
- Unidirectional
- Package / Case :
- SOD-123F
- Voltage - Forward (Vf) (Max) @ If :
- 900mV @ 10mA
- Time@Peak Reflow Temperature-Max (s) :
- 30
- Packaging :
- Tape and Reel (TR)
- Base Part Number :
- NZH24
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Tolerance :
- ±3%
- Working Voltage :
- 24V
- Zener Voltage :
- 23.715V
- Mount :
- Surface Mount
- ECCN Code :
- EAR99
- Element Configuration :
- Single
- Forward Voltage :
- 900mV
- Peak Reflow Temperature (Cel) :
- 260
- Peak Reverse Current :
- 40nA
- Mounting Type :
- Surface Mount
- Impedance-Max :
- 35Ohm
- Terminal Finish :
- Tin (Sn)
- Impedance :
- 35Ohm
- Current - Reverse Leakage @ Vr :
- 40nA @ 19V
- Published :
- 2009
- RoHS Status :
- ROHS3 Compliant
- Max Power Dissipation :
- 500mW
- Operating Temperature :
- -55°C~150°C
- Lead Free :
- Lead Free
- Number of Terminations :
- 2
- Diode Element Material :
- SILICON
- Diode Type :
- ZENER DIODE
- Terminal Position :
- Dual
- Radiation Hardening :
- No
- Terminal Form :
- Flat
- Reference Voltage :
- 24V
- Number of Elements :
- 1
- JESD-609 Code :
- e3
- Reference Standard :
- IEC-60134
- Number of Pins :
- 2
- Factory Lead Time :
- 4 Weeks
- Working Test Current :
- 5mA
- HTS Code :
- 8541.10.00.80
- Max Reverse Leakage Current :
- 40nA
- Voltage Tolerance :
- 3%
- Datasheets
- NZH24C,115
ZENER DIODE 35Ohm ±3% 23.715V 40nA @ 19V -55°C~150°C 500mW 2 Terminations SOD-123F
NZH24C,115 Overview
An electrical device such as this requires reverse leakage current of 40nA @ 19V.A maximum reverse leakage current is reached at 40nA.Setting the working test voltage to 5mA is required to operate this device.As soon as the maximum voltage - Forward (Vf) is supplied, it reaches 900mV @ 10mA V.This device can function fully with a reverse peak voltage of 40nA.
NZH24C,115 Features
reverse leakage current of 40nA @ 19V
40nA @ 19V is the maximum voltage (Tol)
Reverse leakage current reaches 40nA
the working test voltage to 5mA
minimal dynamic impedance is 5mA
NZH24C,115 Applications
There are a lot of Nexperia USA Inc.
NZH24C,115 applications of zener single diodes.
