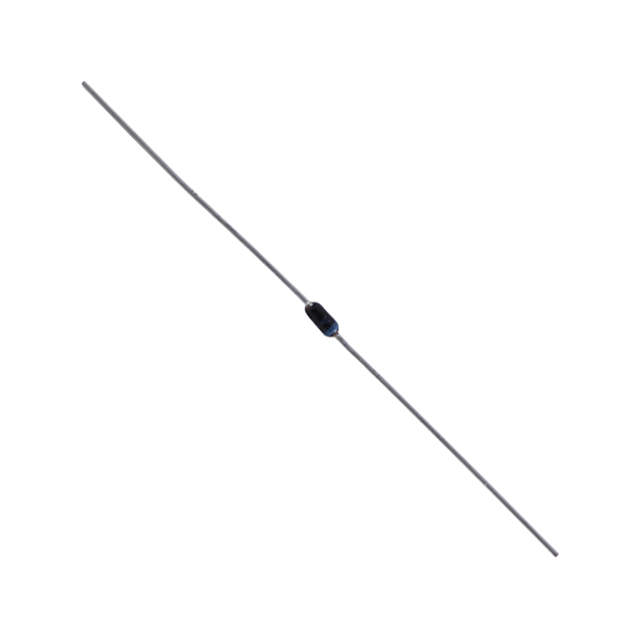

NTE5010A

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Zener - Single

Test Current (It) :

20(mA)

Reach Compliance Code :

Unknown

Voltage Tolerance :

5%

Package Shape :

Round

Working Test Current :

20 mA

Typical Voltage Temperature Coefficient :

±0.03%/°C

Supplier Device Package :

DO-35

Test Current :

20 MilliAmps

Operating Temperature Classification :

Military

Manufacturer :

NTE Electronics

Number of Elements :

1

Mounting Type :

Through Hole

Wattage :

0.5

Configuration :

Single

Power Dissipation-Max :

0.5 W

Zener Voltage :

5.1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

ECCN Code :

EAR99

Power Dissipation :

0.5(W)

Subcategory :

Voltage Reference Diodes

Impedance (Max) (Zzt) :

17 Ohms

Package Type :

DO-35

Polarity :

Unidirectional

Pin Count :

2

Diode Type :

ZENER DIODE

Knee Impedance :

17

JESD-30 Code :

O-PALF-W2

Technology :

Zener

Voltage Tol-Max :

5%

Package :

Bag

Package / Case :

DO-204AH, DO-35, Axial

JEDEC-95 Code :

DO-35

Rad Hardened :

No

Surface Mount :

No

Mounting :

Through Hole

Power - Max :

500 mV

Operating Temp Range :

-65C to 200C

Number of Terminals :

2

Case Connection :

Isolated

Terminal Form :

Wire

Voltage - Zener (Nom) (Vz) :

5.1 V

Operating Temperature :

-65°C ~ 200°C

Qualification Status :

Not Qualified

Series :

-

Terminal Position :

Axial

HTS Code :

8541.10.00.50

Forward Voltage :

1.1 Volts

Rev Curr :

0.005(mA)

Tolerance :

±5%

Product Status :

Active

Diode Element Material :

SILICON
