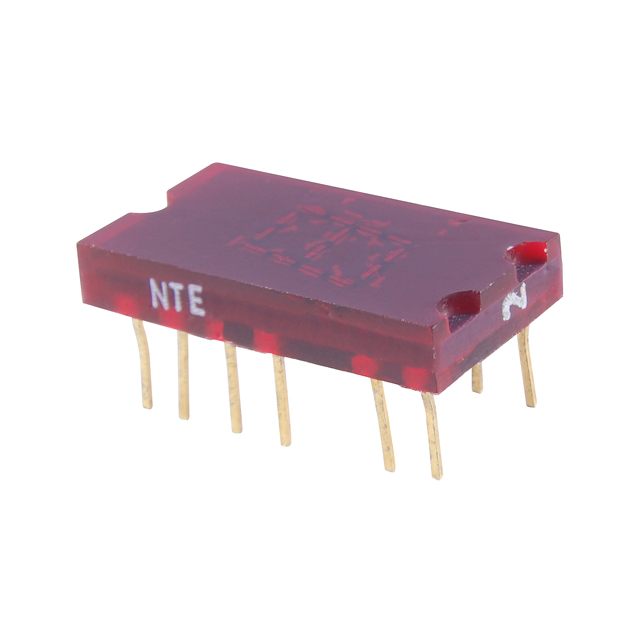

NTE3050

Manufacturer :

NTE Electronics, Inc.

Product Category :

HTS Code :

8541.40.20.00

Additional Feature :

TTL COMPATIBLE

Max Operating Temperature :

70 °C

Display Type :

7-Segment

RoHS :

Compliant

Min Operating Temperature :

0 °C

Number of Functions :

1

Power Dissipation (Max) :

-

Wavelength - Peak :

660nm

Reach Compliance Code :

Compliant

Number of Characters :

1

Size / Dimension :

0.760 H x 0.400 W x 0.120 D (19.30mm x 10.16mm x 3.05mm)

Digit/Alpha Size :

0.27 (6.86mm)

Voltage - Forward (Vf) (Typ) :

3.4V

Common Pin :

Common Anode

Product Status :

Active

Manufacturer :

NTE Electronics

Series :

-

Element Configuration :

Common Anode

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Number of Pins :

14

Color :

Red

Current - Test :

20mA

Number of LEDs :

8

Mount :

Through Hole

Display Height :

6.85 mm

Subcategory :

LED Displays

Peak Reverse Current :

100 µA

Package :

Bag

Pbfree Code :

No

JESD-609 Code :

e0

Viewing Area (height) :

9.9 mm

Base Product Number :

NTE305

Forward Current-Max :

0.03 A

Package / Case :

14-DIP (0.300, 7.62mm), 11 Leads

Millicandela Rating :

0.275mcd

Terminal Finish :

Tin/Lead (Sn/Pb)

Configuration :

COMMON ANODE, 1 DIGIT
