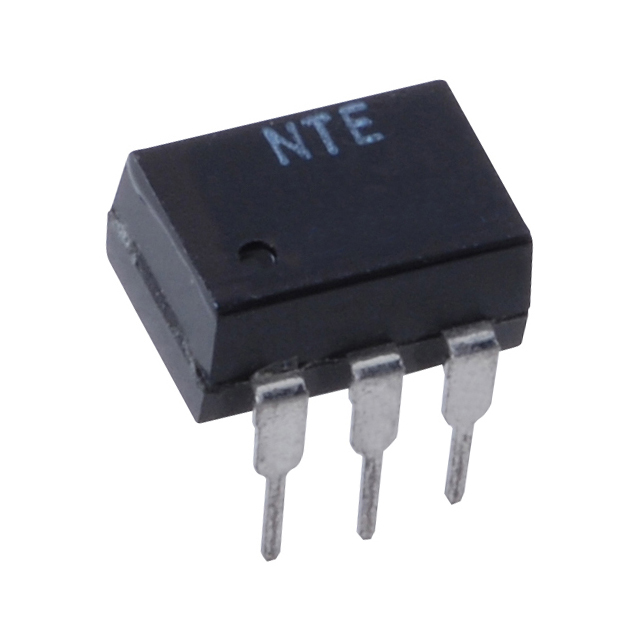

NTE3049

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Triac, SCR Output

Operating Temp Range :

-40C to 85C

Base Product Number :

NTE30

Number of Elements :

1

Configuration :

Single

Pin Count :

6

Isolation Voltage-Max :

7500 V

Input Trigger Current-Nom :

15 mA

Turn On Time :

-

Package Type :

PDIP

Forward Current-Max :

0.05 A

Supplier Device Package :

6-DIP

Voltage - Isolation :

7500Vpk

Output Type :

Triac

Peak Off-state Voltage-Min :

250 V

Mounting :

Through Hole

Zero Crossing Circuit :

yes

Current - DC Forward (If) (Max) :

50 mA

Maximum Forward Current :

50(mA)

Power Dissipation :

0.25(W)

Output Device :

Triac

Forward Voltage :

1.5(V)

HTS Code :

8541.40.80.00

Reverse Breakdown Voltage :

3(V)

Forward Current :

50(mA)

Operating Temperature :

-40°C ~ 85°C

Series :

-

Optoelectronic Device Type :

TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

Package :

Bag

Voltage - Off State :

250 V

Product Status :

Active

Mounting Type :

Through Hole

Current - LED Trigger (Ift) (Max) :

15mA

Rad Hardened :

No

Approval Agency :

-

Operating Temperature Classification :

Industrial

Manufacturer :

NTE Electronics

Repetitive Peak off-state volt :

250(V)

Isolation Voltage :

5250(V)

Number of Channels :

1

Static dV/dt (Min) :

100V/μs (Typ)

Voltage - Forward (Vf) (Typ) :

1.3V

Current - Hold (Ih) :

100μA

Trigger Current :

15(mA)

Package / Case :

6-DIP (0.300", 7.62mm)

Reach Compliance Code :

Unknown
