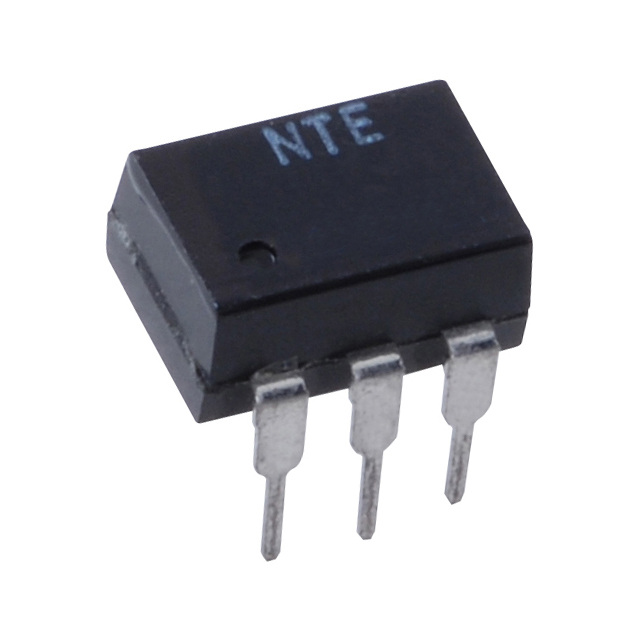

NTE3048

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Triac, SCR Output

Turn On Time :

-

Supplier Device Package :

6-DIP

Current - Hold (Ih) :

100μA

Output Device :

Triac

Approval Agency :

-

Configuration :

Single

Power Dissipation :

0.33(W)

Voltage - Off State :

400 V

Output Type :

Triac

Optoelectronic Device Type :

TRIAC OUTPUT OPTOCOUPLER

Series :

-

Pbfree Code :

No

Forward Current-Max :

0.06 A

Input Trigger Current-Nom :

8 mA

Maximum Forward Current :

60(mA)

Static dV/dt (Min) :

10V/μs (Typ)

Trigger Current :

8(mA)

Reverse Breakdown Voltage :

3(V)

HTS Code :

8541.40.80.00

Operating Temperature :

-40°C ~ 85°C

Zero Crossing Circuit :

No

Rad Hardened :

No

Package / Case :

6-DIP (0.300, 7.62mm)

Voltage - Forward (Vf) (Typ) :

1.5V (Max)

Operating Temperature Classification :

Industrial

Current - DC Forward (If) (Max) :

60 mA

Isolation Voltage-Max :

7500 V

Product Status :

Active

Repetitive Peak off-state volt :

400(V)

Current - LED Trigger (Ift) (Max) :

15mA

Peak Off-state Voltage-Min :

400 V

Voltage - Isolation :

7500Vpk

Number of Elements :

1

Package Type :

PDIP

Operating Temp Range :

-40C to 85C

Terminal Finish :

Tin/Lead (Sn/Pb)

Manufacturer :

NTE Electronics

Mounting Type :

Through Hole

Reach Compliance Code :

Compliant

Mounting :

Through Hole

Forward Voltage :

1.5(V)

Isolation Voltage :

5250(V)

Package :

Bag

Pin Count :

6

Base Product Number :

NTE30

JESD-609 Code :

e0

Number of Channels :

1
