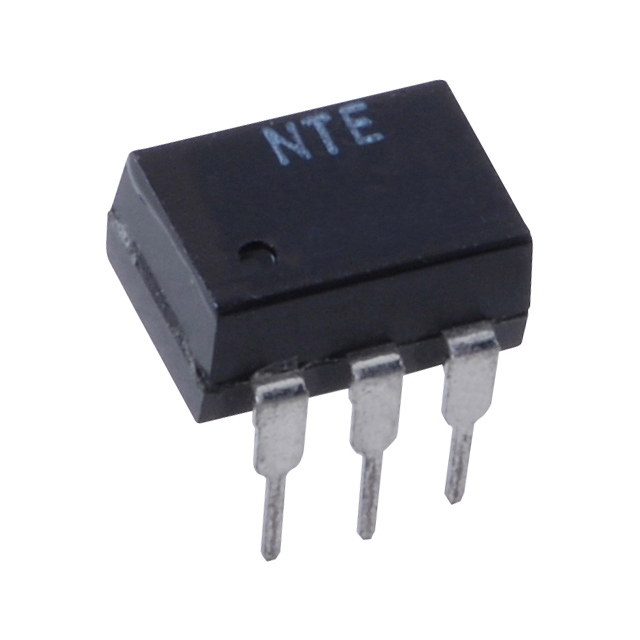

NTE3047

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Triac, SCR Output

Current - DC Forward (If) (Max) :

60 mA

Approval Agency :

-

Series :

-

Weight :

7.257478 g

Number of Elements :

1

Configuration :

Single

Height :

12.7 mm

Reach Compliance Code :

Unknown

Current - Hold (Ih) :

100μA

Current - LED Trigger (Ift) (Max) :

15mA

Min Operating Temperature :

-40 °C

Number of Pins :

6

REACH SVHC :

No SVHC

Input Current :

10 mA

Length :

152.4 mm

Mount :

Through Hole

Forward Current-Max :

0.06 A

Mounting Type :

Through Hole

Zero Crossing Circuit :

No

RoHS :

Compliant

Output Type :

Triac

Optoelectronic Device Type :

TRIAC OUTPUT OPTOCOUPLER

Number of Channels :

1

HTS Code :

8541.40.80.00

Peak Off-state Voltage-Min :

250 V

Manufacturer :

NTE Electronics

Isolation Voltage :

7.5 kV

Max Operating Temperature :

85 °C

Operating Temperature :

-40°C ~ 85°C

Product Status :

Active

Turn On Time :

-

Package / Case :

6-DIP (0.300, 7.62mm)

Voltage - Off State :

250 V

Voltage - Isolation :

7500Vpk

Package :

Bag

Base Product Number :

NTE30

Width :

76.2 mm

Isolation Voltage-Max :

7500 V

Input Trigger Current-Nom :

8 mA

Output Voltage :

250 V

Power Dissipation :

330 mW

Supplier Device Package :

6-DIP

Voltage - Forward (Vf) (Typ) :

1.5V (Max)

Static dV/dt (Min) :

10V/μs (Typ)

Max Input Voltage :

1.5 V
