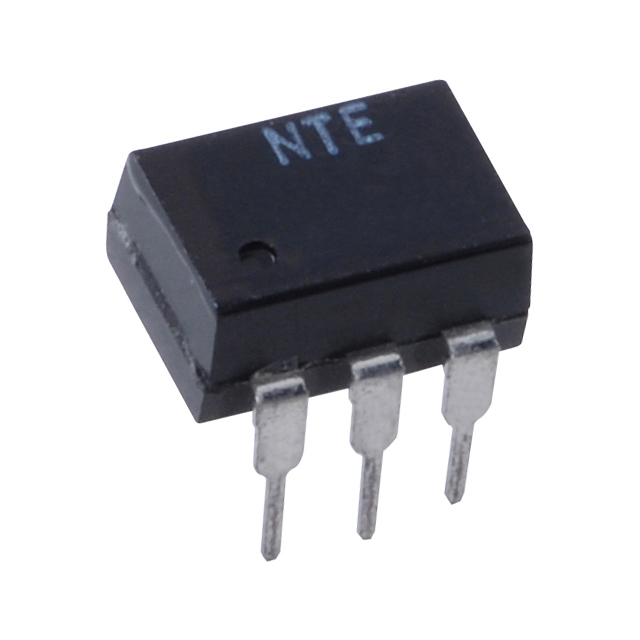

NTE3046

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Triac, SCR Output

Power Dissipation :

0.25(W)

Configuration :

Single

Series :

-

Current - Hold (Ih) :

500μA

Product Status :

Active

Package :

Bag

Number of Channels :

1

Maximum Forward Current :

60(mA)

Output Device :

SCR

Zero Crossing Circuit :

No

Turn On Time :

-

Pin Count :

6

Rad Hardened :

No

Mounting :

Through Hole

Mounting Type :

Through Hole

Manufacturer :

NTE Electronics

Voltage - Forward (Vf) (Typ) :

1.25V

Operating Temp Range :

-30C to 100C

Package Type :

PDIP

Isolation Voltage :

3000(V)

Operating Temperature :

-30°C ~ 100°C

Package / Case :

6-DIP (0.300", 7.62mm)

Supplier Device Package :

6-DIP

JESD-609 Code :

e0

Reverse Breakdown Voltage :

3(V)

Approval Agency :

-

Reach Compliance Code :

Compliant

Pbfree Code :

No

HTS Code :

8541.40.80.00

Peak Off-state Voltage-Min :

400 V

Static dV/dt (Min) :

-

Optoelectronic Device Type :

SCR OUTPUT OPTOCOUPLER

Forward Current :

60(mA)

Input Trigger Current-Nom :

5 mA

Current - LED Trigger (Ift) (Max) :

14mA

Forward Current-Max :

0.06 A

Base Product Number :

NTE30

Current - DC Forward (If) (Max) :

60 mA

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Elements :

1

Voltage - Isolation :

-

Output Current :

0.1(A)

Forward Voltage :

1.5(V)

Output Type :

SCR

Operating Temperature Classification :

COMMERCIAL
