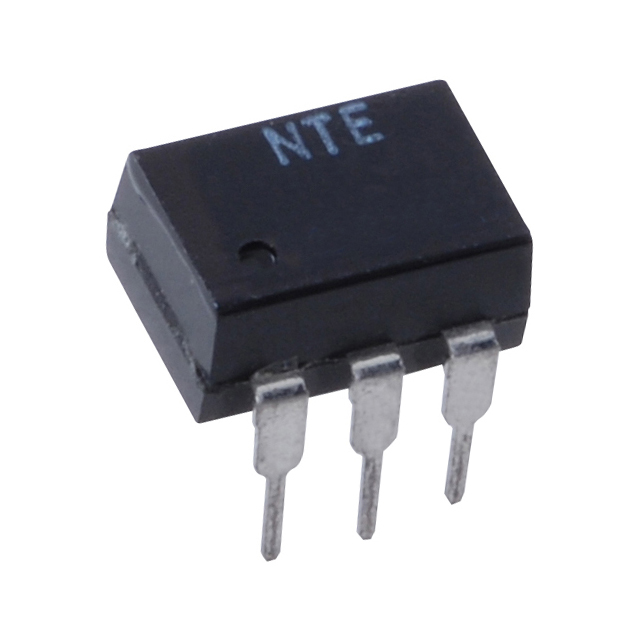

NTE3045

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Isolation Voltage-Max :

7500 V

Terminal Finish :

Tin/Lead (Sn/Pb)

Rise / Fall Time (Typ) :

1µs, 2µs

Product Status :

Active

Supplier Device Package :

6-DIP

Package / Case :

6-DIP (0.300, 7.62mm)

Reach Compliance Code :

Compliant

Current Transfer Ratio (Max) :

-

Current - Output / Channel :

50mA

Optoelectronic Device Type :

DARLINGTON OUTPUT OPTOCOUPLER

Voltage - Forward (Vf) (Typ) :

1.15V

Voltage - Output (Max) :

80V

Turn On / Turn Off Time (Typ) :

3.5µs, 95µs

Series :

-

Configuration :

Single

Dark Current-Max :

1000 nA

Coll-Emtr Bkdn Voltage-Min :

80 V

Operating Temperature :

-55°C ~ 100°C

Output Type :

Darlington

HTS Code :

8541.40.80.00

Number of Channels :

1

Vce Saturation (Max) :

-

Number of Elements :

1

Current Transfer Ratio (Min) :

-

Package :

Bag

Mounting Type :

Through Hole

Input Type :

DC

Manufacturer :

NTE Electronics

Forward Current-Max :

0.06 A

Current - DC Forward (If) (Max) :

60 mA

Pbfree Code :

No

Voltage - Isolation :

7500Vpk

JESD-609 Code :

e0
