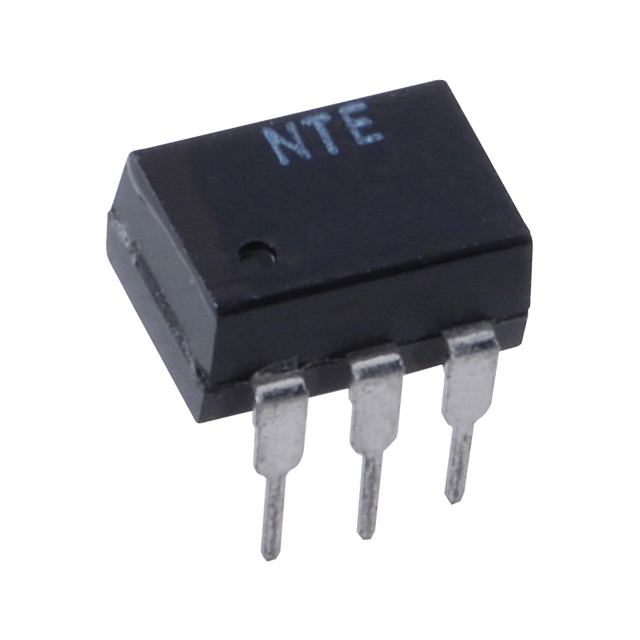

NTE3044

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Operating Temp Range :

-55C to 100C

Output Device :

Darlington

Rad Hardened :

No

Package Type :

PDIP

Reverse Breakdown Voltage :

3(V)

Supplier Device Package :

6-DIP

Reach Compliance Code :

Unknown

Package / Case :

6-DIP (0.300, 7.62mm)

Voltage - Isolation :

7500Vpk

Optoelectronic Device Type :

DARLINGTON OUTPUT OPTOCOUPLER

Input Type :

DC

Maximum Forward Current :

60(mA)

Manufacturer :

NTE Electronics

Isolation Voltage :

5300(V)

Output Type :

DC

Current Transfer Ratio (Min) :

-

Number of Elements :

1

Dark Current-Max :

1000 nA

Power Dissipation :

0.25(W)

Vce Saturation (Max) :

-

Mounting :

Through Hole

Configuration :

Single

Operating Temperature :

-55°C ~ 100°C

Rise / Fall Time (Typ) :

1µs, 2µs

Current Transfer Ratio (Max) :

-

Product Status :

Active

HTS Code :

8541.40.80.00

Pin Count :

6

Number of Channels :

1

Forward Current :

60(mA)

Operating Temperature Classification :

Industrial

Turn On / Turn Off Time (Typ) :

3.5µs, 95µs

Current - DC Forward (If) (Max) :

10 mA

Coll-Emtr Bkdn Voltage-Min :

80 V

Series :

-

Forward Current-Max :

0.06 A

Voltage - Forward (Vf) (Typ) :

1.15V

Forward Voltage :

2(V)

Mounting Type :

Through Hole

Voltage - Output (Max) :

80V

Isolation Voltage-Max :

7500 V

Package :

Bag

Current - Output / Channel :

30mA
