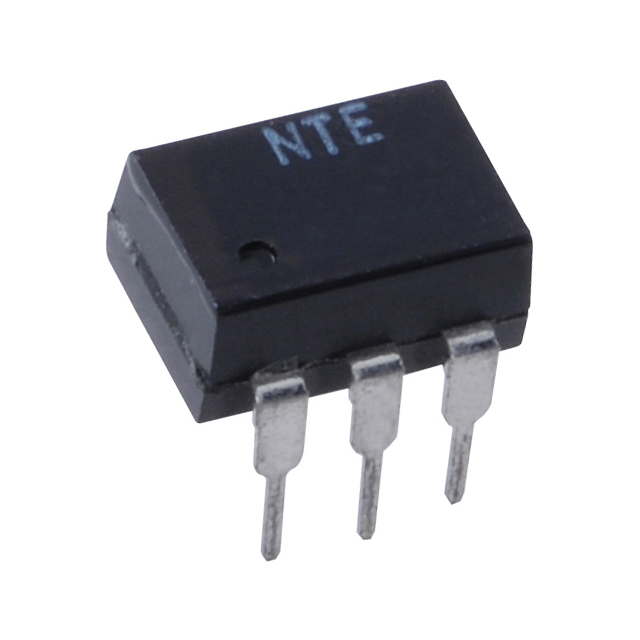

NTE3043

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Operating Temperature :

-55°C ~ 100°C

Forward Voltage :

1.5(V)

Coll-Emtr Bkdn Voltage-Min :

80 V

Pbfree Code :

No

Current Transfer Ratio :

210(%)

Turn On / Turn Off Time (Typ) :

4.5μs, 3.5μs

Current Transfer Ratio (Min) :

70% @ 10mA

Isolation Voltage-Max :

2500 V

Product Status :

Active

Dark Current-Max :

60 nA

Power Dissipation :

0.26(W)

Voltage - Isolation :

4000VDC

Number of Elements :

1

Supplier Device Package :

6-DIP

Input Type :

DC

Reach Compliance Code :

Compliant

Operating Temperature Classification :

Industrial

HTS Code :

8541.40.80.00

Voltage - Output (Max) :

80V

Package :

Bag

Terminal Finish :

Tin/Lead (Sn/Pb)

Package / Case :

6-DIP (0.300", 7.62mm)

Output Type :

Transistor

Mounting :

Through Hole

Number of Channels :

1

Rise / Fall Time (Typ) :

-

Isolation Voltage :

1750(V)

Vce Saturation (Max) :

400mV

Current - DC Forward (If) (Max) :

60 mA

Current - Output / Channel :

-

Voltage - Forward (Vf) (Typ) :

1.5V (Max)

Reverse Breakdown Voltage :

3(V)

Maximum Forward Current :

60(mA)

Pin Count :

6

Package Type :

PDIP

JESD-609 Code :

e0

Configuration :

Single

Forward Current-Max :

0.06 A

Optoelectronic Device Type :

TRANSISTOR OUTPUT OPTOCOUPLER

Operating Temp Range :

-55C to 100C

Mounting Type :

Through Hole

Output Device :

Transistor with Base

Rad Hardened :

No

Current Transfer Ratio (Max) :

210% @ 10mA

Manufacturer :

NTE Electronics

Forward Current :

60(mA)

Series :

-
