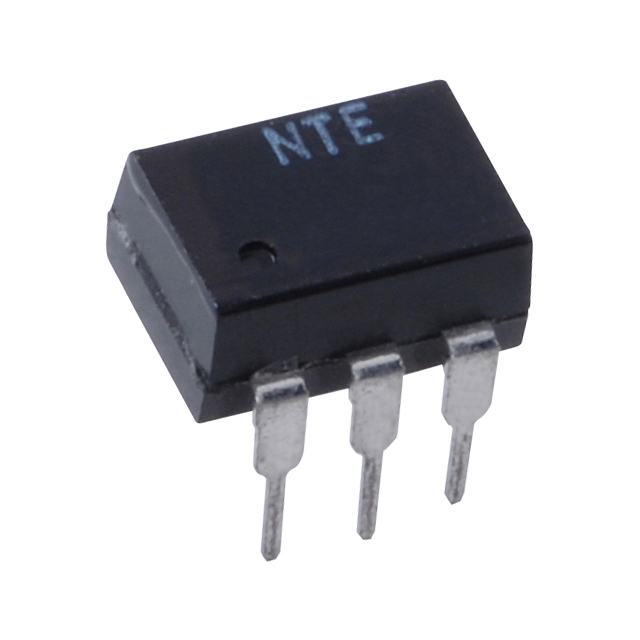

NTE3042

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Current Transfer Ratio (Max) :

-

Coll-Emtr Bkdn Voltage-Min :

30 V

Manufacturer :

NTE Electronics

Voltage - Forward (Vf) (Typ) :

1.2V

Turn On / Turn Off Time (Typ) :

1.2µs, 1.2µs

Supplier Device Package :

6-DIP

Current Transfer Ratio (Min) :

20% @ 10mA

Current - DC Forward (If) (Max) :

60 mA

Configuration :

Single

Optoelectronic Device Type :

TRANSISTOR OUTPUT OPTOCOUPLER

Package :

Bag

Rise / Fall Time (Typ) :

2μs, 2μs

Package / Case :

6-DIP (0.300, 7.62mm)

JESD-609 Code :

e0

HTS Code :

8541.40.80.00

Output Type :

Transistor

Isolation Voltage-Max :

1500 V

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Elements :

1

Operating Temperature :

-55°C ~ 100°C

Mounting Type :

Through Hole

Voltage - Output (Max) :

30V

Number of Channels :

1

Vce Saturation (Max) :

400mV

Reach Compliance Code :

Compliant

Dark Current-Max :

50 nA

Product Status :

Active

Input Type :

DC

Series :

-

Forward Current-Max :

0.06 A

Current - Output / Channel :

-

Pbfree Code :

No

Voltage - Isolation :

7500VAC
