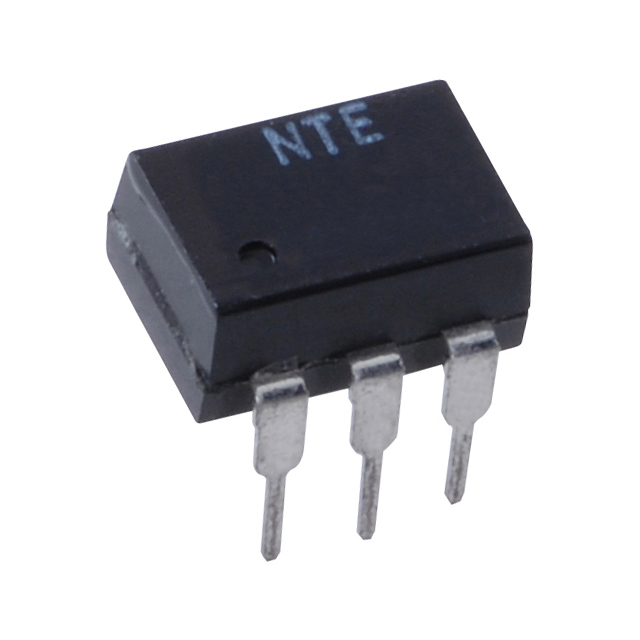

NTE3041

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Forward Current-Max :

0.06 A

Isolation Voltage-Max :

7500 V

Forward Voltage :

1.5(V)

Turn On / Turn Off Time (Typ) :

7.5s, 5.7s

Rise / Fall Time (Typ) :

3.2s, 4.7s

Power Dissipation :

0.25(W)

Mounting :

Through Hole

HTS Code :

8541.40.80.00

Current Transfer Ratio (Min) :

-

Reach Compliance Code :

Unknown

Current - DC Forward (If) (Max) :

60 mA

Current - Output / Channel :

150mA

Package / Case :

6-DIP (0.300, 7.62mm)

Voltage - Forward (Vf) (Typ) :

1.15V

Operating Temperature Classification :

Industrial

Vce Saturation (Max) :

300mV

Manufacturer :

NTE Electronics

Forward Current :

60(mA)

Current Transfer Ratio (Max) :

-

Supplier Device Package :

6-DIP

Dark Current-Max :

50 nA

Number of Channels :

1

Pin Count :

6

Package Type :

PDIP

Current Transfer Ratio :

100(%)

Reverse Breakdown Voltage :

6(V)

Rad Hardened :

No

Voltage - Isolation :

7500Vpk

Configuration :

Single

Series :

-

Operating Temperature :

-55°C ~ 100°C

Output Type :

DC

Number of Elements :

1

Package :

Bag

Maximum Forward Current :

60(mA)

Output Device :

Transistor with Base

Voltage - Output (Max) :

30V

Product Status :

Active

Isolation Voltage :

5300(V)

Mounting Type :

Through Hole

Operating Temp Range :

-55C to 100C

Input Type :

DC

Coll-Emtr Bkdn Voltage-Min :

30 V

Optoelectronic Device Type :

TRANSISTOR OUTPUT OPTOCOUPLER

Collector Current (DC) :

0.15(A)
