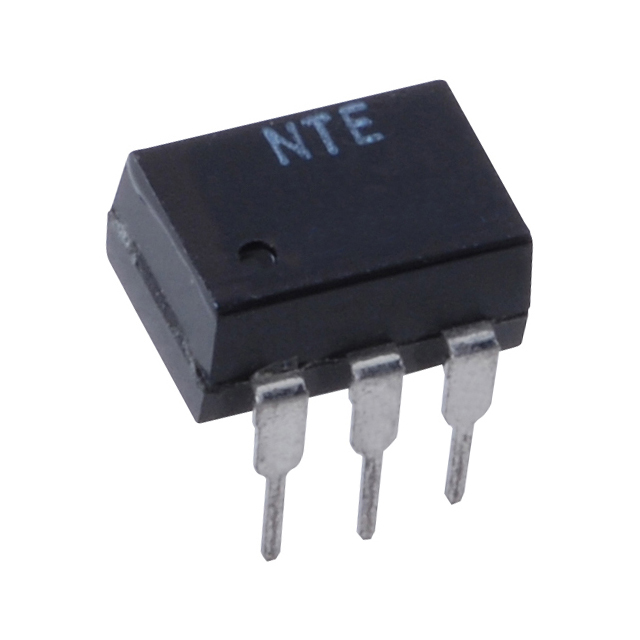

NTE3040

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Min Operating Temperature :

-55 °C

Collector Emitter Breakdown Voltage :

30 V

Isolation Voltage :

1.5 kV

Collector Base Voltage (VCBO) :

70 V

Mount :

Through Hole

Weight :

72.574779 g

REACH SVHC :

No SVHC

Width :

76.2 mm

Input Type :

DC

HTS Code :

8541.40.80.00

Height :

12.7 mm

Mounting Type :

Through Hole

hFE Min :

1

Number of Channels :

1

Configuration :

Single

RoHS :

Compliant

Turn On / Turn Off Time (Typ) :

2μs, 2μs

Number of Elements :

1

Series :

-

Voltage - Output (Max) :

30V

Coll-Emtr Bkdn Voltage-Min :

30 V

Supplier Device Package :

6-DIP

Product Status :

Active

Max Operating Temperature :

100 °C

Optoelectronic Device Type :

TRANSISTOR OUTPUT OPTOCOUPLER

Pbfree Code :

No

Collector Emitter Voltage (VCEO) :

30 V

Output Type :

Transistor

JESD-609 Code :

e0

Manufacturer :

NTE Electronics

Rise / Fall Time (Typ) :

-

Package / Case :

6-DIP (0.300, 7.62mm)

Forward Current-Max :

0.06 A

Terminal Finish :

Tin/Lead (Sn/Pb)

Isolation Voltage-Max :

1060 V

Current Transfer Ratio (Max) :

-

Polarity :

NPN

Length :

152.4 mm

Power Dissipation :

200 mW

Reach Compliance Code :

Compliant

Operating Temperature :

-55°C ~ 100°C

Current Transfer Ratio (Min) :

20% @ 10mA

Package :

Bag

Voltage - Isolation :

7500VAC

Dark Current-Max :

50 nA

Voltage - Forward (Vf) (Typ) :

1.18V

Current - DC Forward (If) (Max) :

100 mA

Forward Current :

100 mA

Current - Output / Channel :

-

Vce Saturation (Max) :

500mV

Number of Pins :

6
