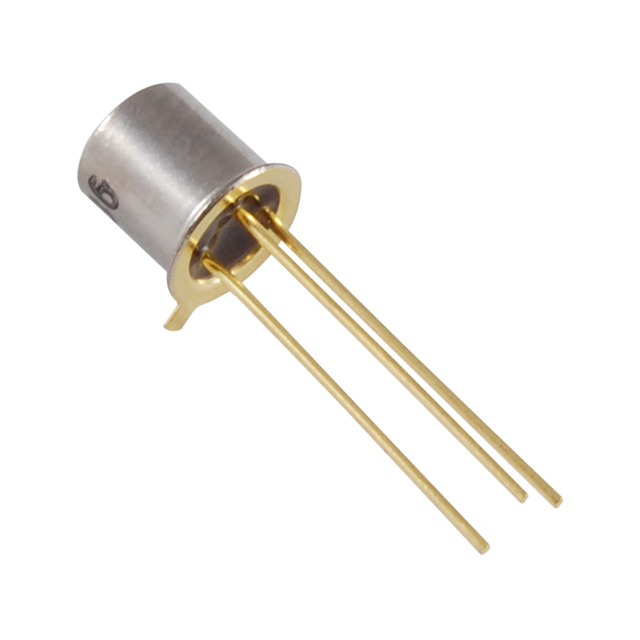

NTE3036

Manufacturer :

NTE Electronics, Inc.

Product Category :

Optical Sensors - Phototransistors

HTS Code :

8541.40.70.80

Polarity :

NPN

Voltage - Collector Emitter Breakdown (Max) :

50 V

Phototransistor Type :

Photodarlington

Light Current-Nom :

20 mA

Wavelength :

-

Coll-Emtr Bkdn Voltage-Min :

40 V

Operating Temp Range :

-65C to 200C

Viewing Angle :

-

Operating Temperature Classification :

Military

Package / Case :

Radial - 2 Leads

Shape :

Round

Response Time-Max :

0.000015 s

Manufacturer :

NTE Electronics

Product Status :

Active

Mounting :

Through Hole

Operating Temperature :

-65°C ~ 200°C (TJ)

Rad Hardened :

No

Package :

Bag

Dark Current :

100(nA)

Orientation :

Top View

Mounting Type :

Through Hole

Subcategory :

Photo Transistors

Mounting Feature :

THROUGH HOLE MOUNT

Optoelectronic Device Type :

PHOTO DARLINGTON

Power Dissipation-Max :

0.25 W

Power - Max :

250 mW

Current - Dark (Id) (Max) :

100 nA

ECCN Code :

3A001.a.2.a

Rise Time :

100000(ns)

Number of Functions :

1

Reach Compliance Code :

Unknown

Power Dissipation :

0.25(W)

Size :

4.69 mm

Light Current :

20000(uA)

Number of Elements :

1

Configuration :

Single

Series :

-

Dark Current-Max :

100 nA

Pin Count :

3

Surface Mount :

No

Package Type :

TO-18
