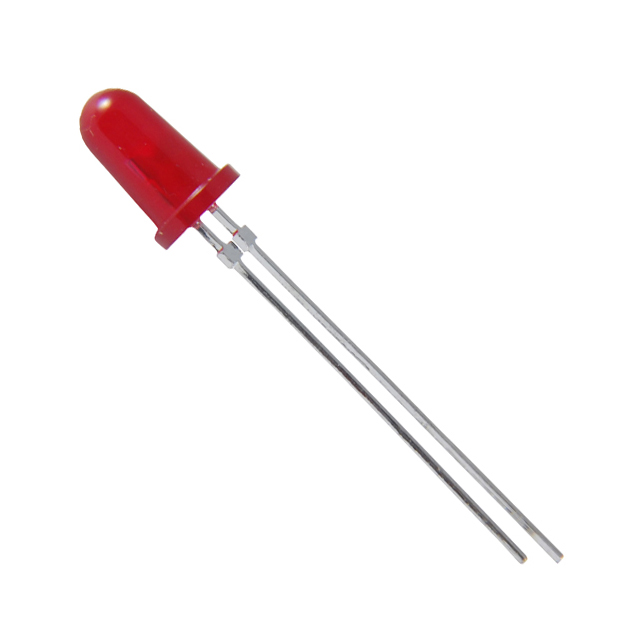

NTE3025

Manufacturer :

NTE Electronics, Inc.

Product Category :

Subcategory :

Visible LEDs

Current - Test :

20mA

Forward Current :

40(mA)

Package :

Bag

Chip Material :

GaP

Package Type :

T-1 3/4

Maximum Forward Current :

40(mA)

Package / Case :

Radial

Reach Compliance Code :

Compliant

Overall Height :

6.63 mm

Lens Transparency :

Diffused

Lens Style :

Round with Domed Top

Type :

Uni-Color

HTS Code :

8541.40.20.00

Additional Feature :

IC COMPATIBLE

Wavelength :

655 nm

Optoelectronic Device Type :

SINGLE COLOR LED

Size / Dimension :

5.10mm Dia

Operating Temperature Classification :

COMMERCIAL

Product Length (mm) :

5.84(mm)

Color :

Red

Current Rating :

40 MilliAmps

Main Category :

Standard LED

Wavelength - Peak :

655nm

Reverse Voltage :

5 Volts DC

Forward Voltage-Max :

1.8 V

Max Operating Temperature :

100 °C

Terminal Pitch :

2.54 mm

Operating Temperature :

0.1 to 212 Degrees F

Luminous Intensity :

300(MAX)MCD

High Brightness :

No

Terminal Finish :

Tin/Lead (Sn/Pb)

Wavelength - Dominant :

-

Mounting :

Through Hole

Emitting Color :

Red

Number of LEDs :

1

Millicandela Rating :

1.1mcd

Rad Hardened :

No

Configuration :

Standard

Product Status :

Active

Mounting Type :

Through Hole

Size :

5.08 mm

Height (Max) :

11.18mm

Voltage - Forward (Vf) (Typ) :

1.7V

Manufacturer :

NTE Electronics

Lens Color :

Red

Packing Method :

Bulk

T-code :

T-1 3/4

Mount :

Through Hole

Peak Wavelength :

655(nm)

Pin Count :

2

Shape Type :

Circular

Operating Temp Range :

-55C to 100C

Min Operating Temperature :

-55 °C

JESD-609 Code :

e0

Mounting Orientation :

Top Mount

Lens Size :

5.00mm Dia

Surface Mount :

No

Number of Functions :

1

Power Dissipation :

110 MilliWatts

Forward Voltage :

1.7 Volts DC

Number of Terminals :

2

Features :

-

Number of Pins :

2

Forward Current-Max :

0.04 A

Number of Elements :

1

Series :

-

Product Depth (mm) :

5.84(mm)

Supplier Device Package :

5mm

Shape :

Round

Pbfree Code :

No

Mounting Feature :

RADIAL MOUNT

RoHS :

yes

Viewing Angle :

30(deg)
