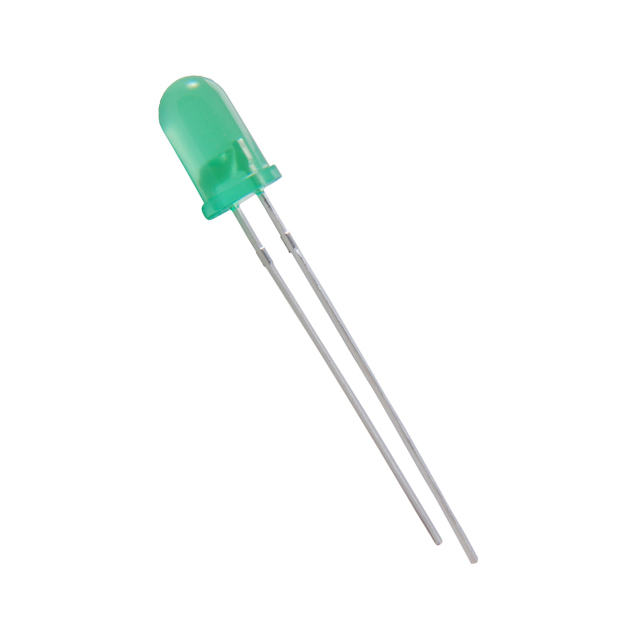

NTE3024

Manufacturer :

NTE Electronics, Inc.

Product Category :

Operating Temperature :

0.1 to 212 Degrees F

Lens Dimensions :

5.08X5.08X5.62(mm)

Configuration :

Standard

Product Length (mm) :

5.84(mm)

Pbfree Code :

No

High Brightness :

No

Packing Method :

Bulk

Main Category :

Standard LED

Operating Temp Range :

-55C to 100C

Product Height (mm) :

6.63(mm)

Number of Functions :

1

Forward Voltage-Max :

2.2 V

Manufacturer :

NTE Electronics

Pin Count :

2

Current - Test :

20mA

Subcategory :

Visible LEDs

Mounting Feature :

RADIAL MOUNT

Lens Style :

Round with Domed Top

Size :

5.08 mm

Terminal Finish :

Tin/Lead (Sn/Pb)

RoHS :

yes

Wavelength - Dominant :

570nm

Product Status :

Active

HTS Code :

8541.40.20.00

Surface Mount :

No

Millicandela Rating :

55mcd

Voltage - Forward (Vf) (Typ) :

2.2V

Additional Feature :

IC COMPATIBLE

Size / Dimension :

5.10mm Dia

Lens Color :

Green

Current Rating :

30 MilliAmps

Features :

-

Height (Max) :

6.63mm

Luminous Intensity :

8.7mcd

Reverse Voltage :

5 Volts DC

Package Type :

T-1 3/4

Wavelength - Peak :

572nm

Type :

Uni-Color

Forward Current-Max :

0.03 A

Mounting Type :

Through Hole

Product Depth (mm) :

5.84(mm)

Lens Type :

Diffused

Terminal Pitch :

2.54 mm

Mounting Orientation :

Top Mount

Peak Wavelength :

565(nm)

Overall Height :

6.63 mm

Series :

-

JESD-609 Code :

e0

Lens Size :

5.00mm Dia

Viewing Angle :

36(deg)

Color :

Green

Shape :

Round

Reach Compliance Code :

Compliant

Power Dissipation :

100 MilliWatts

Number of Elements :

1

Lens Transparency :

Diffused

Package / Case :

Radial

Number of Terminals :

2

Rad Hardened :

No

Chip Material :

GaP

Forward Voltage :

2.1 Volts DC

Operating Temperature Classification :

Industrial

Mounting :

Through Hole

Optoelectronic Device Type :

SINGLE COLOR LED

Emitting Color :

Yellow Green

Supplier Device Package :

5mm

Package :

Bag

Shape Type :

Circular
