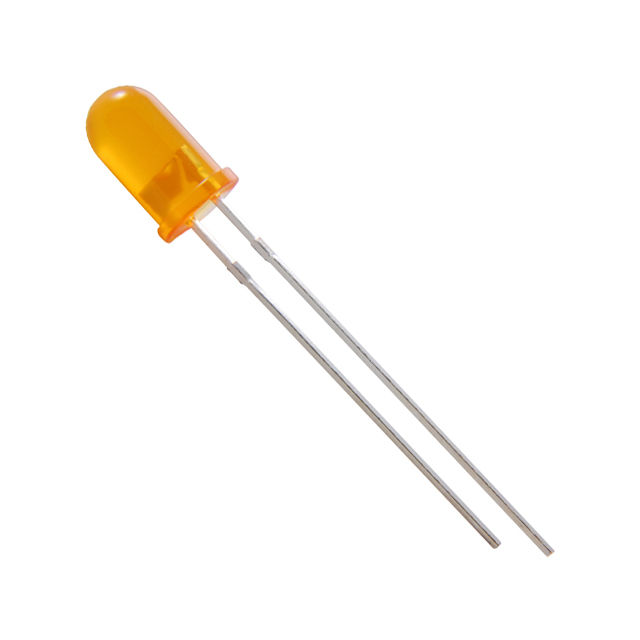

NTE3023

Manufacturer :

NTE Electronics, Inc.

Product Category :

Wavelength - Dominant :

-

Terminal Pitch :

2.54 mm

RoHS :

yes

Viewing Angle :

65°

Forward Voltage :

2 Volts DC

Additional Feature :

IC COMPATIBLE

Optoelectronic Device Type :

SINGLE COLOR LED

Operating Temperature :

0.1 to 212 Degrees F

Reverse Voltage :

5 Volts DC

Supplier Device Package :

5mm

Current - Test :

20mA

Lens Style :

Round with Domed Top

Configuration :

Standard

Color :

Orange

Peak Wavelength :

635 nm

Package / Case :

Radial

Forward Voltage-Max :

2 V

Product Status :

Active

Lens Type :

Diffused

Series :

-

Pbfree Code :

No

Lens Transparency :

-

Mounting Feature :

RADIAL MOUNT

Forward Current-Max :

0.03 A

JESD-609 Code :

e0

Voltage - Forward (Vf) (Typ) :

2V

Current Rating :

30 MilliAmps

Surface Mount :

No

Size / Dimension :

5.10mm Dia

Millicandela Rating :

8.7mcd

Power Dissipation :

100 MilliWatts

Lens Color :

Orange

Packing Method :

Bulk

Reach Compliance Code :

Compliant

Height (Max) :

6.63mm

Size :

5.08 mm

Package :

Bag

Terminal Finish :

Tin/Lead (Sn/Pb)

Wavelength - Peak :

635nm

Subcategory :

Visible LEDs

Features :

-

HTS Code :

8541.40.20.00

Manufacturer :

NTE Electronics

Shape :

Round

Overall Height :

6.63 mm

Number of Terminals :

2

Mounting Type :

Through Hole

Lens Size :

5.00mm Dia

Number of Functions :

1
