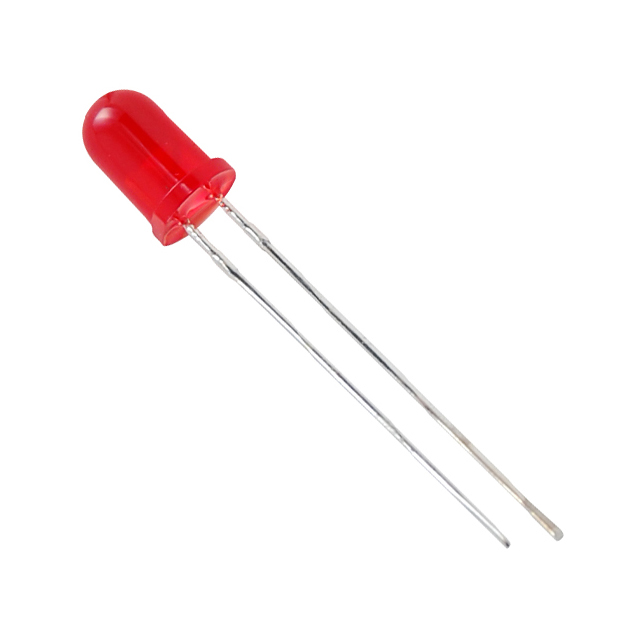

NTE3022

Manufacturer :

NTE Electronics, Inc.

Product Category :

RoHS :

yes

Lens Style :

Round with Domed Top

Wavelength - Dominant :

637nm

Operating Temp Range :

-55C to 100C

Product Status :

Active

Mounting Feature :

RADIAL MOUNT

Lens Dimensions :

5.08X5.08X5.62(mm)

High Brightness :

No

Terminal Finish :

Tin/Lead (Sn/Pb)

JESD-609 Code :

e0

Number of Elements :

1

Rad Hardened :

No

Shape :

Round

Lens Size :

5.00mm Dia

Terminal Pitch :

2.54 mm

Series :

-

Packing Method :

Bulk

Pbfree Code :

No

Overall Height :

6.63 mm

Lens Color :

Red

Forward Voltage :

2(V)

Mounting Orientation :

Top Mount

Product Height (mm) :

6.63(mm)

Current - Test :

20mA

Supplier Device Package :

5mm

Forward Voltage-Max :

2 V

Emitting Color :

Red

Pin Count :

2

Additional Feature :

IC COMPATIBLE

Reach Compliance Code :

Compliant

Package / Case :

Radial

Chip Material :

GaAsP

Optoelectronic Device Type :

SINGLE COLOR LED

Features :

-

Lens Transparency :

Diffused

Operating Temperature :

0.1 to 212 Degrees F

Type :

Uni-Color

Operating Temperature Classification :

Industrial

Package :

Bag

Forward Current-Max :

0.03 A

Size :

5.08 mm

Package Type :

T-1 3/4

Shape Type :

Circular

Product Depth (mm) :

5.84(mm)

Mounting :

Through Hole

Mounting Type :

Through Hole

Wavelength - Peak :

-

Height (Max) :

8.60mm

Color :

Red

Surface Mount :

No

Voltage - Forward (Vf) (Typ) :

2V

HTS Code :

8541.40.20.00

Product Length (mm) :

5.84(mm)

Number of Functions :

1

Reverse Voltage :

5(V)

Current Rating :

30 MilliAmps

Luminous Intensity :

8.7mcd

Configuration :

Standard

Millicandela Rating :

60mcd

Size / Dimension :

5.10mm Dia

Subcategory :

Visible LEDs

Manufacturer :

NTE Electronics

Number of Terminals :

2

Lens Type :

Diffused

Power Dissipation :

100(W)

Peak Wavelength :

635(nm)

Viewing Angle :

36(deg)

Main Category :

Standard LED
