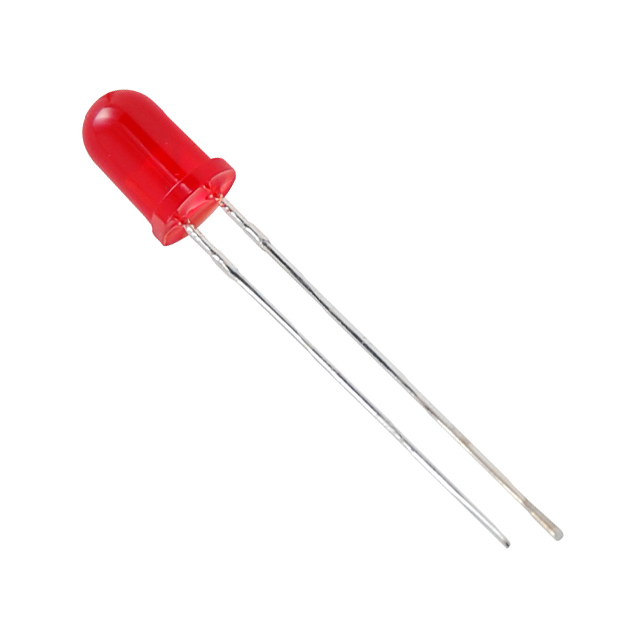

NTE3020

Manufacturer :

NTE Electronics, Inc.

Product Category :

Lens Transparency :

Diffused

Size / Dimension :

5.10mm Dia

Packing Method :

Bulk

Operating Temperature :

0.1 to 212 Degrees F

Package / Case :

Radial

Viewing Angle :

50°

Millicandela Rating :

800µcd

Overall Height :

6.63 mm

Lens Style :

Round with Domed Top

Number of Terminals :

2

Terminal Finish :

Tin/Lead (Sn/Pb)

Forward Current-Max :

0.04 A

Reverse Voltage :

5 Volts DC

Wavelength - Peak :

655nm

Supplier Device Package :

5mm

Peak Wavelength :

655 nm

Lens Type :

Diffused

Pbfree Code :

No

Features :

-

Forward Voltage-Max :

1.7 V

Mounting Feature :

RADIAL MOUNT

Subcategory :

Visible LEDs

Lens Size :

5.00mm Dia

Package :

Bag

Current Rating :

40 MilliAmps

Additional Feature :

IC COMPATIBLE

Voltage - Forward (Vf) (Typ) :

1.7V

Forward Voltage :

1.7 Volts DC

Configuration :

Standard

Shape :

Round

RoHS :

yes

Terminal Pitch :

2.54 mm

Mounting Type :

Through Hole

Series :

-

Current - Test :

20mA

Product Status :

Active

Wavelength - Dominant :

-

JESD-609 Code :

e0

Number of Functions :

1

Surface Mount :

No

HTS Code :

8541.40.20.00

Height (Max) :

6.63mm

Size :

5.08 mm

Power Dissipation :

80 MilliWatts

Manufacturer :

NTE Electronics

Color :

Red

Lens Color :

Red

Optoelectronic Device Type :

SINGLE COLOR LED

Reach Compliance Code :

Compliant
