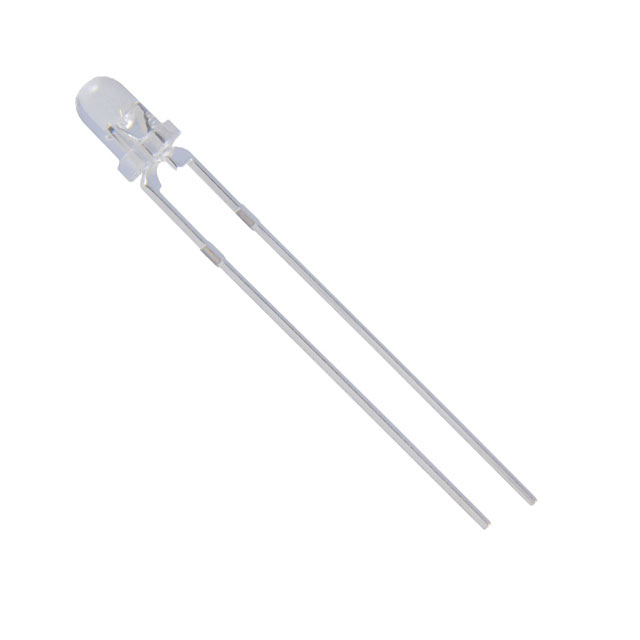

NTE30120

Manufacturer :

NTE Electronics, Inc.

Product Category :

High Brightness :

yes

Number of Elements :

1

Lens Size :

3.00mm Dia

Package :

Bag

Lens Style :

Round with Domed Top

Mounting Orientation :

Top Mount

Peak Wavelength :

395(nm)

Lens Dimensions :

2.94X2.94X4.3(mm)

Height (Max) :

5.30mm

Size / Dimension :

3.00mm Dia

Lens Transparency :

Clear

Package Type :

T-1

Product Length (mm) :

3.85(mm)

Type :

Uni-Color

Optoelectronic Device Type :

SINGLE COLOR LED

Package / Case :

Radial

Features :

-

Pin Count :

2

Shape Type :

Circular

Luminous Intensity :

100mcd

Current Rating :

20 MilliAmps

Operating Temperature :

0.1 to 185 Degrees F

Manufacturer :

NTE Electronics

Wavelength - Peak :

400nm

RoHS :

yes

Product Status :

Active

Voltage - Forward (Vf) (Typ) :

3.3V

Forward Current :

20(mA)

Lens Color :

Colorless

Reach Compliance Code :

Unknown

Mounting Type :

Through Hole

Viewing Angle :

30(deg)

Main Category :

Standard LED

Wavelength - Dominant :

-

Reverse Voltage :

5 Volts DC

Millicandela Rating :

75mcd

Operating Temperature Classification :

COMMERCIAL

Product Height (mm) :

5.3(mm)

Current - Test :

20mA

Mounting :

Through Hole

Product Depth (mm) :

3.85(mm)

Power Dissipation :

120 MilliWatts

Color :

Purple

Series :

-

Supplier Device Package :

3mm

Maximum Forward Current :

25(mA)

HTS Code :

8541.40.20.00

Operating Temp Range :

-35C to 85C

Rad Hardened :

No

Forward Voltage :

3.3 Volts DC

Configuration :

Standard
