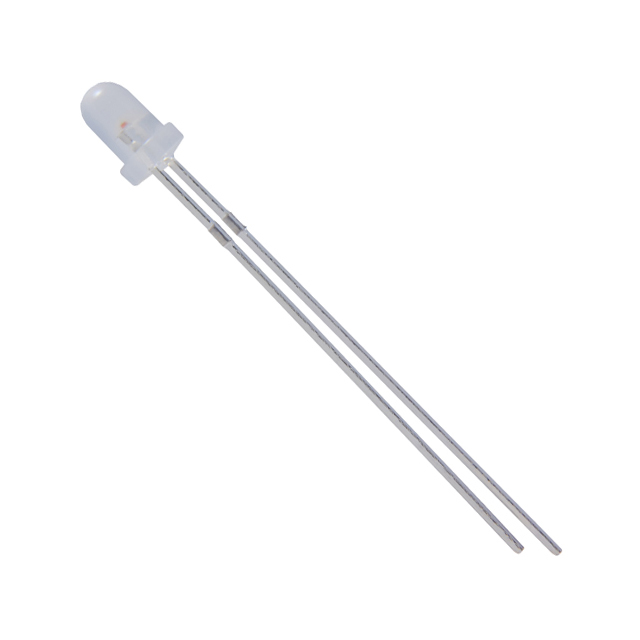

NTE30110

Manufacturer :

NTE Electronics, Inc.

Product Category :

Wavelength - Peak :

640nm Red, 568nm Yellow-Green

Operating Temp Range :

-40C to 85C

Mounting Type :

Through Hole

Maximum Forward Current :

30(mA)

Supplier Device Package :

3mm

Series :

-

Power Dissipation :

75 MilliWatts

Lens Type :

Colorless Diffused

Type :

Bi-Color

Dominant Wave Length :

635/572(nm)

Current - Test :

20mA

Product Height (mm) :

5.3(mm)

Mounting Orientation :

Top Mount

Wavelength - Dominant :

635nm Red, 572nm Yellow-Green

Product Status :

Active

Main Category :

Standard LED

Pin Count :

2

Height (Max) :

5.36mm

Lens Transparency :

Diffused

Size / Dimension :

3.00mm Dia

Operating Temperature :

0.1 to 185 Degrees F

Forward Voltage :

2 Volts DC

Test Current (It) :

20(mA)

Luminous Intensity :

200/110MCD

RoHS :

yes

Color :

Red, Yellow-Green

Product Depth (mm) :

3.85(mm)

Current Rating :

30 MilliAmps

Millicandela Rating :

200mcd Red, 110mcd Yellow-Green

Viewing Angle :

45°

Product Length (mm) :

3.85(mm)

Voltage - Forward (Vf) (Typ) :

2V Red, 2.3V Yellow-Green

Chip Material :

AlGaInP

Optoelectronic Device Type :

DUAL COLOR LED

High Brightness :

No

Configuration :

-

Shape Type :

Circular

Reach Compliance Code :

Unknown

Emitting Color :

Red/Yellow Green

Lens Color :

White

Peak Wavelength :

640/568(nm)

Package :

Bag

Package / Case :

Radial

Package Type :

T-1

Reverse Voltage :

5 Volts DC

Lens Style :

Round with Domed Top

Features :

-

HTS Code :

8541.40.20.00

Lens Size :

3.00mm Dia

Mounting :

Through Hole

Rad Hardened :

No

Number of Elements :

2

Manufacturer :

NTE Electronics

Operating Temperature Classification :

Industrial
