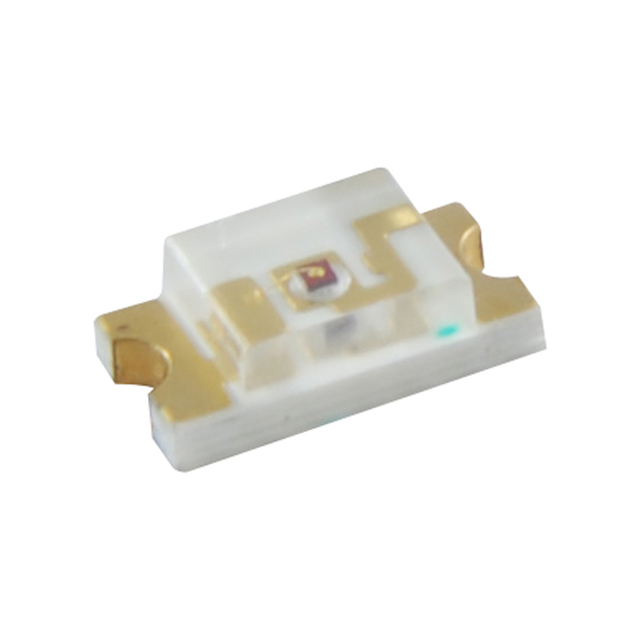

NTE30077
Or copy the link below:
- Mfr.Part #
- NTE30077
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- 1206 (3216 Metric)
- Datasheet
- Download
- Description
- LED-SMD 1206 SUPER ORANGE
- Stock
- 1,558
- In Stock ：
- 1,558
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Lens Color :
- Colorless
- Wavelength - Peak :
- 620nm
- Package / Case :
- 1206 (3216 Metric)
- Forward Voltage :
- 2 Volts DC
- Reverse Voltage :
- 5 Volts DC
- Power Dissipation :
- 100 MilliWatts
- Viewing Angle :
- 140°
- HTS Code :
- 8541.40.20.00
- Operating Temperature :
- 0.1 to 185 Degrees F
- Manufacturer :
- NTE Electronics
- Series :
- -
- RoHS :
- yes
- Size / Dimension :
- 3.20mm L x 1.50mm W
- Configuration :
- Standard
- Lens Style :
- Rectangle with Flat Top
- Features :
- -
- Current - Test :
- 20mA
- Current Rating :
- 25 MilliAmps
- Mounting Type :
- Surface Mount
- Supplier Device Package :
- 1206
- Reach Compliance Code :
- Unknown
- Product Status :
- Active
- Color :
- Orange
- Lens Size :
- 2.00mm x 1.5mm
- Height (Max) :
- 1.10mm
- Optoelectronic Device Type :
- SINGLE COLOR LED
- Package :
- Bag
- Voltage - Forward (Vf) (Typ) :
- 2V
- Lens Transparency :
- Clear
- Wavelength - Dominant :
- 615nm
- Millicandela Rating :
- 100mcd
- Datasheets
- NTE30077
NTE30077 datasheet pdf and Optoelectronics product details from NTE Electronics, Inc. stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
