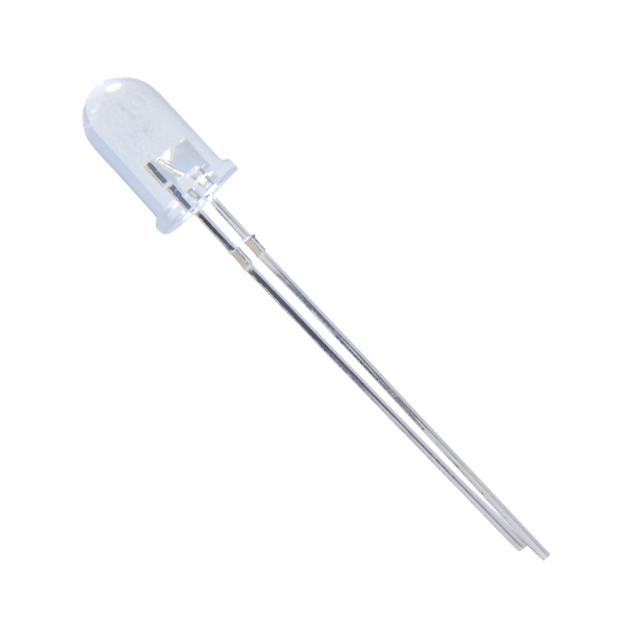

NTE30045

Manufacturer :

NTE Electronics, Inc.

Product Category :

Product Length (mm) :

5.7(mm)

Current Rating :

30 MilliAmps

Peak Wavelength :

Not Required(nm)

Series :

-

Operating Temperature :

0.1 to 185 Degrees F

Optoelectronic Device Type :

SINGLE COLOR LED

Product Height (mm) :

8.7(mm)

Configuration :

Standard

Wavelength - Dominant :

-

Reverse Voltage :

5 Volts DC

Mounting :

Through Hole

Type :

Uni-Color

Shape Type :

Circular

Wavelength - Peak :

-

Power Dissipation :

120 MilliWatts

Emitting Color :

White

Maximum Forward Current :

30(mA)

Mounting Orientation :

Top Mount

Package / Case :

Radial

Supplier Device Package :

5mm

Main Category :

Standard LED

Lens Size :

5.00mm Dia

Size / Dimension :

5.00mm Dia

HTS Code :

8541.40.20.00

Operating Temperature Classification :

COMMERCIAL

Millicandela Rating :

16000mcd

Number of Elements :

1

Height (Max) :

8.70mm

Features :

-

Luminous Intensity :

16000mcd

Color :

White

Lens Style :

Round with Domed Top

Lens Color :

Colorless

Forward Voltage :

3.6 Volts DC

Lens Dimensions :

5x5x7.7(mm)

Forward Current :

30(mA)

Rad Hardened :

No

Package Type :

T-1 3/4

Mounting Type :

Through Hole

High Brightness :

yes

Current - Test :

20mA

RoHS :

yes

Lens Transparency :

Clear

Dominant Wave Length :

Not Required(nm)

Product Depth (mm) :

5.7(mm)

Reach Compliance Code :

Unknown

Package :

Bag

Pin Count :

2

Viewing Angle :

22(deg)

Chip Material :

InGaN

Product Status :

Active

Manufacturer :

NTE Electronics

Voltage - Forward (Vf) (Typ) :

3.6V

Operating Temp Range :

-25C to 85C
