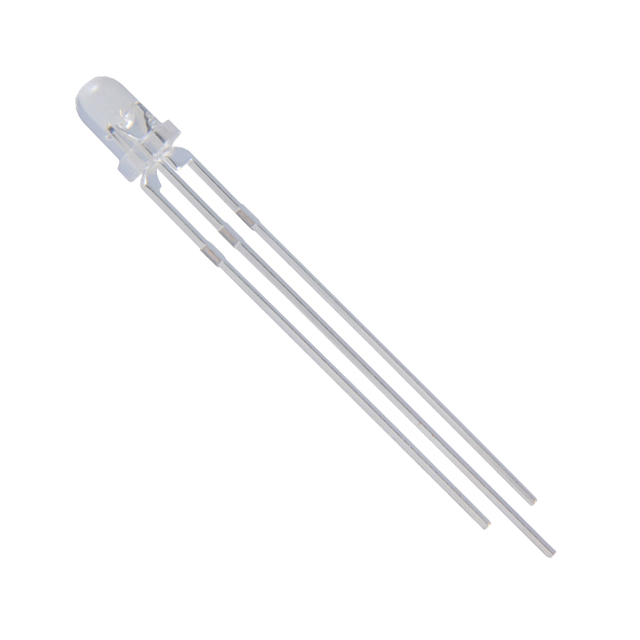

NTE30044

Manufacturer :

NTE Electronics, Inc.

Product Category :

Number of Elements :

1

Product Depth (mm) :

3.85(mm)

Voltage - Forward (Vf) (Typ) :

3.3V

Package Type :

T-1

Forward Voltage :

4(V)

Mounting Orientation :

Top Mount

Series :

-

Reach Compliance Code :

Unknown

Mounting Type :

Through Hole

Size / Dimension :

3.00mm Dia

Configuration :

Standard

Color :

White

High Brightness :

yes

Product Height (mm) :

5.3(mm)

Shape Type :

Circular

Type :

Uni-Color

Lens Transparency :

Clear

Manufacturer :

NTE Electronics

Rad Hardened :

No

Mounting :

Through Hole

Lens Color :

Colorless

Operating Temperature :

0.1 to 185 Degrees F

Power Dissipation :

120(W)

Chip Material :

InGaN

Lens Dimensions :

3X3X4.28(mm)

Forward Current :

30(mA)

HTS Code :

8541.40.20.00

Luminous Intensity :

7000mcd

Operating Temperature Classification :

COMMERCIAL

Lens Size :

3.00mm Dia

Current Rating :

30 MilliAmps

Operating Temp Range :

-25C to 85C

Wavelength - Dominant :

-

RoHS :

yes

Product Length (mm) :

3.85(mm)

Reverse Voltage :

5(V)

Maximum Forward Current :

30(mA)

Optoelectronic Device Type :

SINGLE COLOR LED

Main Category :

Standard LED

Wavelength - Peak :

-

Viewing Angle :

30(deg)

Features :

-

Product Status :

Active

Lens Style :

Round with Domed Top

Height (Max) :

5.30mm

Millicandela Rating :

7000mcd

Supplier Device Package :

3mm

Pin Count :

2

Current - Test :

20mA

Peak Wavelength :

Not Required(nm)

Dominant Wave Length :

Not Required(nm)

Package / Case :

Radial

Emitting Color :

White

Package :

Bag
