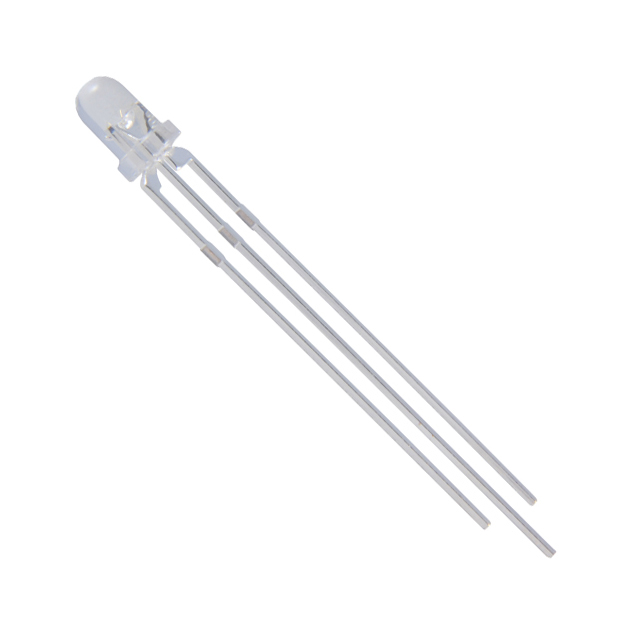

NTE30036

Manufacturer :

NTE Electronics, Inc.

Product Category :

Main Category :

Standard LED

Millicandela Rating :

3000mcd

Product Status :

Active

Wavelength - Dominant :

470nm

Voltage - Forward (Vf) (Typ) :

3.3V

RoHS :

yes

Rad Hardened :

No

Lens Color :

Colorless

Operating Temp Range :

-40C to 85C

Viewing Angle :

15(deg)

Mounting Orientation :

Top Mount

Lens Transparency :

Clear

Shape Type :

Circular

Configuration :

Standard

Reverse Voltage :

5(V)

Lens Style :

Round with Domed Top

Package / Case :

Radial

Lens Dimensions :

3X3X4.28(mm)

Series :

-

Product Height (mm) :

5.3(mm)

Mounting :

Through Hole

Package Type :

T-1

Optoelectronic Device Type :

SINGLE COLOR LED

Maximum Forward Current :

30(mA)

Operating Temperature :

0.1 to 185 Degrees F

Features :

-

Mounting Type :

Through Hole

Operating Temperature Classification :

Industrial

Manufacturer :

NTE Electronics

Package :

Bag

Supplier Device Package :

3mm

Chip Material :

InGaN

Wavelength - Peak :

468nm

Color :

Blue

Power Dissipation :

120(W)

Current Rating :

30 MilliAmps

Product Depth (mm) :

3.85(mm)

Lens Size :

3.00mm Dia

Size / Dimension :

3.00mm Dia

Emitting Color :

Blue

Current - Test :

20mA

Product Length (mm) :

3.85(mm)

Dominant Wave Length :

470(nm)

Peak Wavelength :

468(nm)

Number of Elements :

1

Reach Compliance Code :

Unknown

Luminous Intensity :

3000mcd

Forward Current :

30(mA)

Pin Count :

2

Height (Max) :

5.30mm

HTS Code :

8541.40.20.00

Forward Voltage :

4(V)

High Brightness :

yes

Type :

Uni-Color
