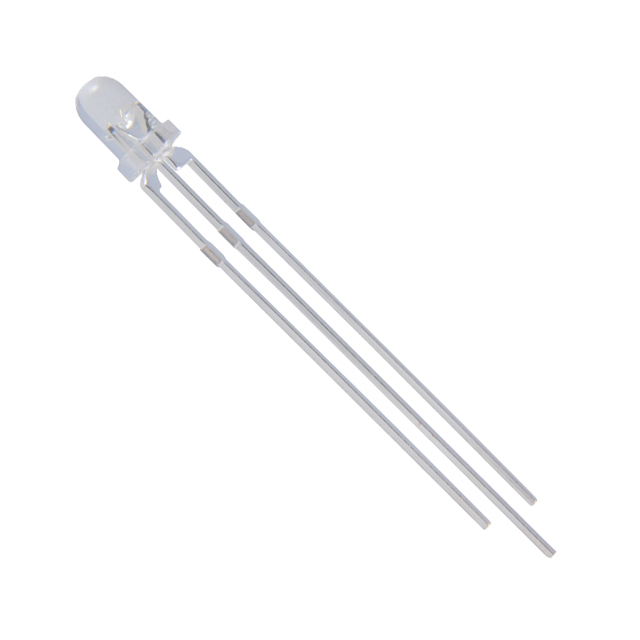

NTE30032

Manufacturer :

NTE Electronics, Inc.

Product Category :

Forward Current :

25(mA)

Mounting Type :

Through Hole

Wavelength - Peak :

592nm

Forward Voltage :

2.4(V)

Peak Wavelength :

592(nm)

Manufacturer :

NTE Electronics

Shape Type :

Circular

Lens Color :

Colorless

Supplier Device Package :

3mm

Maximum Forward Current :

25(mA)

Features :

-

Optoelectronic Device Type :

SINGLE COLOR LED

Product Height (mm) :

5.3(mm)

Lens Transparency :

Clear

Lens Size :

3.00mm Dia

Lens Style :

Round with Domed Top

Mounting Orientation :

Top Mount

Emitting Color :

Amber

Size / Dimension :

3.00mm Dia

Product Depth (mm) :

3.85(mm)

Pin Count :

2

Operating Temp Range :

-25C to 85C

Configuration :

Standard

Viewing Angle :

10(deg)

Package :

Bag

Operating Temperature :

0.1 to 185 Degrees F

RoHS :

yes

High Brightness :

yes

Rad Hardened :

No

Voltage - Forward (Vf) (Typ) :

2V

Reach Compliance Code :

Unknown

Current Rating :

25 MilliAmps

Product Length (mm) :

3.85(mm)

Luminous Intensity :

2500mcd

Package Type :

T-1

Height (Max) :

5.30mm

Color :

Yellow

Chip Material :

AlGaInP

Main Category :

Standard LED

Product Status :

Active

Wavelength - Dominant :

-

Power Dissipation :

100(W)

HTS Code :

8541.40.20.00

Series :

-

Current - Test :

20mA

Package / Case :

Radial

Lens Dimensions :

3X3X4.28(mm)

Operating Temperature Classification :

COMMERCIAL

Millicandela Rating :

2500mcd

Number of Elements :

1

Type :

Uni-Color

Mounting :

Through Hole

Reverse Voltage :

5(V)
