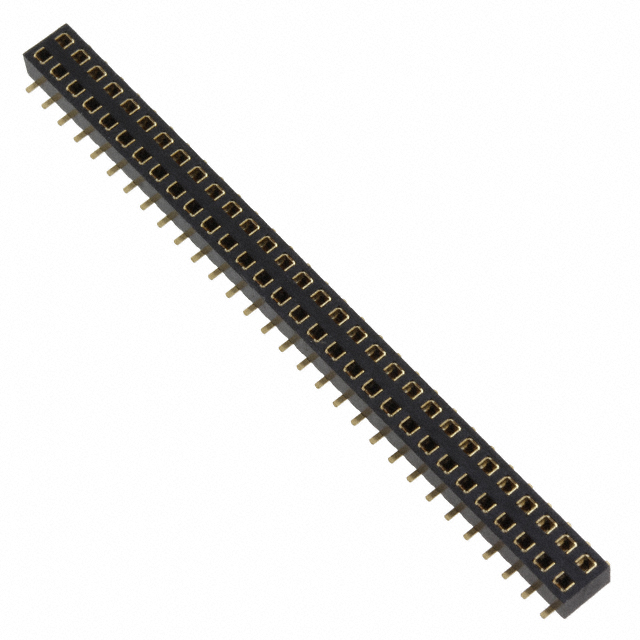

NPPN302GHNP-RC
Or copy the link below:
- Mfr.Part #
- NPPN302GHNP-RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 60POS 0.079 GOLD SMD
- Stock
- 23,096
- In Stock ：
- 23,096
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Current Rating (Amps) :
- 1A
- Housing Material :
- Nylon
- Style :
- Board to Board
- Connector Type :
- Header, Bottom Entry
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- Flash
- Mating Contact Pitch :
- 0.079 inch
- PCB Contact Pattern :
- RECTANGULAR
- Pitch - Mating :
- 0.079 2.00mm
- Reliability :
- COMMERCIAL
- RoHS Status :
- ROHS3 Compliant
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Width :
- 4.2mm
- Packaging :
- Bulk
- Termination :
- Solder
- Fastening Type :
- Push-Pull
- Total Number of Contacts :
- 60
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Depth :
- 0.11 inch
- Body Breadth :
- 0.165 inch
- Number of Positions Loaded :
- All
- Insulation Color :
- Black
- Reference Standard :
- UL
- Contact Type :
- Female Socket
- Number of Rows :
- 2
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 60
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA6T), Nylon 6T
- Number of Conductors :
- ONE
- Reach Compliance Code :
- Unknown
- Lead Free :
- Lead Free
- Operating Temperature :
- -40°C~105°C
- Height :
- 2.6mm
- Length :
- 60mm
- Mounting Type :
- Surface Mount
- Polarization Key :
- POLARIZED HOUSING
- Insulation Height :
- 0.110 2.79mm
- Mount :
- Surface Mount
- Number Of PCB Rows :
- 2
- Published :
- 2006
- Contact Shape :
- Square
- Pbfree Code :
- yes
- Feature :
- Board Guide
- Datasheets
- NPPN302GHNP-RC
NPPN302GHNP-RC Documents
2 Rows Header, Bottom Entry Solder Phosphor Bronze Surface Mount Bulk Gold Polyamide (PA6T), Nylon 6T 60 Positions Female Socket
NPPN302GHNP-RC Overview
This product is packaged in a Header, Bottom Entry box.Surface Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.In many ways, Board Guide makes it more powerful.By Surface Mount, the part is mounted.Operating temperature is set to -40°C~105°C.
NPPN302GHNP-RC Features
NPPN302GHNP-RC Applications
There are a lot of Sullins Connector Solutions
NPPN302GHNP-RC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
