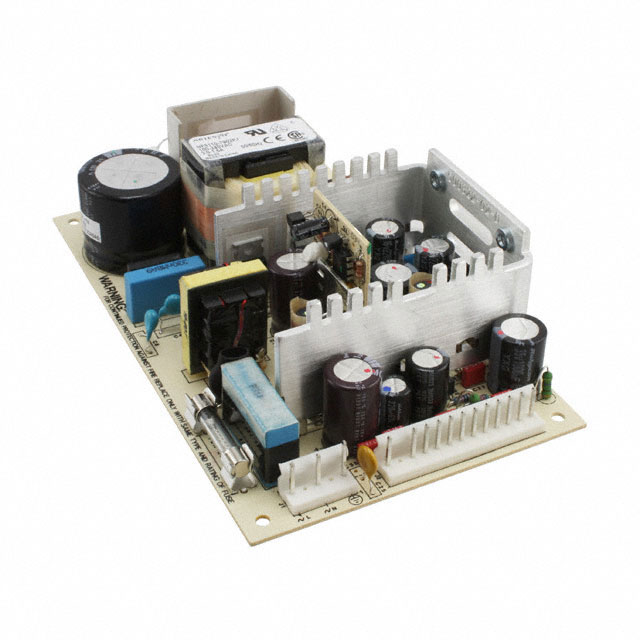

NFS110-7604PJ

Manufacturer :

Artesyn Embedded Power

Product Category :

Current - Output 1 :

10A

Surface Mount :

No

RoHS Status :

RoHS Compliant

Pin Count :

16

Operating Temperature :

0°C~70°C With Derating

Applications :

ITE (Commercial)

ECCN Code :

EAR99

Voltage - Output 4 :

-12V

Efficiency :

70%

Max Input Voltage :

264V

Voltage - Output 3 :

12V

Max Output Power :

110W

Depth :

107.95mm

Type :

Open Frame

Voltage - Isolation :

3kV

Min Input Voltage :

85V

Feature :

Adjustable Output, DC Input Capable, Universal Input

Current - Output 2 :

4.5A

Voltage - Output 1 :

5.1V

Voltage - Input :

85V~264VAC

Number of Outputs :

4

Mounting Type :

Chassis Mount

Min Input Voltage (AC) :

85V

Max Input Voltage (AC) :

264V

Published :

2009

Size / Dimension :

4.25Lx7.00W x 1.80 H 108.0mmx177.8mmx45.7mm

Current - Output (Max) :

8A 3.5A 4.5A 500mA

Terminal Position :

Single

Series :

NFS110 (110W)

REACH SVHC :

No SVHC

Output Power :

110W

Power (Watts) :

80W 110W Forced Air

Minimum Load Required :

No

Number of Pins :

16

Factory Lead Time :

14 Weeks

Current - Output 3 :

500mA

Height :

45.72mm

Voltage - Output 2 :

24V

Number of Terminations :

16
