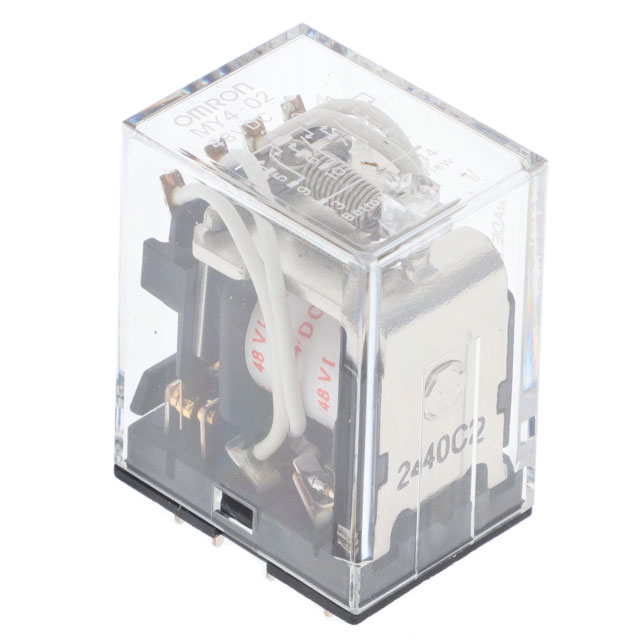

MY4-02-DC48

Manufacturer :

Omron Automation

Product Category :

Power Relays, Over 2 Amps

Length :

27.94mm

Max Voltage Rating (AC) :

250V

Contact Form :

4PDT (4 Form C)

Factory Lead Time :

12 Weeks

Operate Time :

20ms

Series :

MY

Max Operating Temperature :

70°C

Max Voltage Rating (DC) :

125V

Mounting Type :

Through Hole

Must Operate Voltage :

38.4VDC

Coil Resistance :

2.6kOhms

Operating Temperature :

-55°C~70°C

Max Current Rating :

3A

Coil Power :

900mW

Number of Pins :

14

Switching Voltage :

250VAC 125VDC -Max

Power Consumption :

900mW

Packaging :

Bulk

Must Release Voltage :

4.8VDC

Published :

2004

Release Time :

20ms

Termination :

PC Pin

Min Operating Temperature :

-55°C

Coil Current :

18.5mA

Coil Type :

Non Latching

Termination Style :

PC Pin

Contact Material :

Silver (Ag)

Contact Rating (Current) :

3A

RoHS Status :

RoHS Compliant

Relay Type :

GENERAL PURPOSE

Throw Configuration :

4PDT

Coil Voltage (DC) :

48V

Coil Voltage :

48VDC

Mount :

Through Hole

Height :

36.06mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Width :

21.59mm
