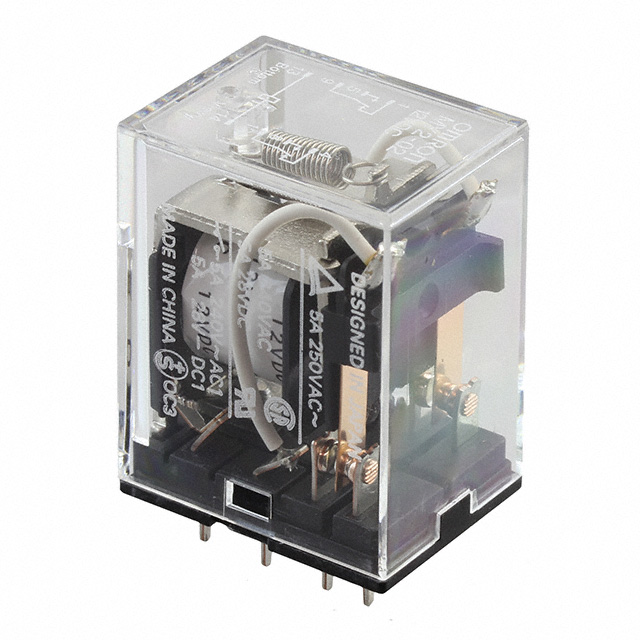

MY2-02-DC12
Or copy the link below:
- Mfr.Part #
- MY2-02-DC12
- Manufacturer
- Omron Automation
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 5A 12V
- Stock
- 61
- In Stock ：
- 61
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Automation
- Product Category :
- Power Relays, Over 2 Amps
- RoHS Status :
- RoHS Compliant
- Coil Voltage :
- 12VDC
- Operate Time :
- 20ms
- Packaging :
- Bulk
- Contact Form :
- DPDT (2 Form C)
- Termination Style :
- PC Pin
- Max Current Rating :
- 5A
- Termination :
- PC Pin
- Mounting Type :
- Through Hole
- Number of Pins :
- 8
- Relay Type :
- GENERAL PURPOSE
- Coil Resistance :
- 160Ohms
- Operating Temperature :
- -55°C~70°C
- Series :
- MY
- Width :
- 21.59mm
- Contact Rating (Current) :
- 5A
- Max Voltage Rating (DC) :
- 125V
- Length :
- 27.94mm
- Throw Configuration :
- DPDT
- Switching Voltage :
- 250VAC 125VDC -Max
- Coil Type :
- Non Latching
- Power Consumption :
- 900mW
- Coil Voltage (DC) :
- 12V
- Contact Material :
- Silver (Ag)
- Coil Power :
- 900mW
- Must Operate Voltage :
- 9.6VDC
- Coil Current :
- 75mA
- Max Voltage Rating (AC) :
- 250V
- Release Time :
- 20ms
- Max Operating Temperature :
- 70°C
- Lead Free :
- Lead Free
- Min Operating Temperature :
- -55°C
- Factory Lead Time :
- 15 Weeks
- Mount :
- Through Hole
- Published :
- 2002
- Height :
- 36.06mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Must Release Voltage :
- 1.2VDC
- Datasheets
- MY2-02-DC12
MY2-02-DC12 Documents
MY2-02-DC12 datasheet pdf and Power Relays, Over 2 Amps product details from Omron Automation and Safety stock available at
