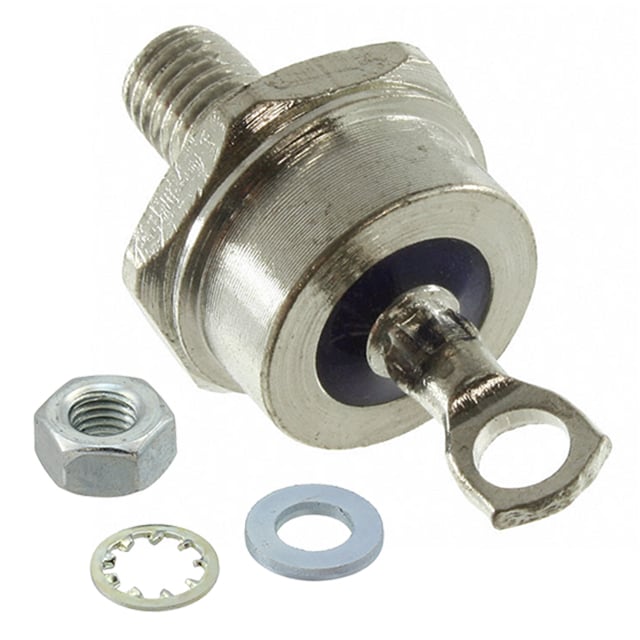

MUR5010R

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

REACH SVHC :

No SVHC

Pbfree Code :

yes

Factory Lead Time :

10 Weeks

Packaging :

Bulk

Peak Reverse Current :

10μA

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Voltage - Forward (Vf) (Max) @ If :

1V @ 50A

Terminal Position :

UPPER

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Number of Elements :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Reverse Voltage :

100V

Operating Temperature - Junction :

-55°C~150°C

Number of Terminations :

1

Package / Case :

DO-203AB, DO-5, Stud

Forward Voltage :

1V

Mounting Type :

Chassis, Stud Mount

Case Connection :

ANODE

JESD-30 Code :

O-MUPM-D1

Diode Element Material :

SILICON

Reverse Recovery Time :

75 ns

Max Surge Current :

600A

Forward Current :

50A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Application :

SUPER FAST RECOVERY

Published :

2010

Average Rectified Current :

50A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mount :

Chassis, Stud

Operating Temperature (Max) :

175°C

Current - Reverse Leakage @ Vr :

10μA @ 50V

Max Repetitive Reverse Voltage (Vrrm) :

100V

Element Configuration :

Single

Number of Phases :

1

RoHS Status :

RoHS Compliant

Max Reverse Voltage (DC) :

100V

Terminal Form :

Solder Lug

Diode Type :

Standard, Reverse Polarity

Number of Pins :

2
