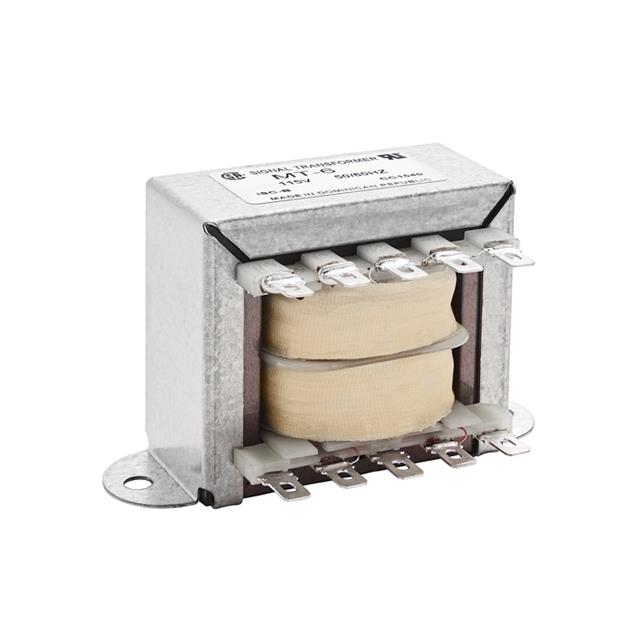

MT-7-12

Share

Or copy the link below:

Mfr.Part #
MT-7-12
Manufacturer
Signal Transformer
Package / Case
Datasheet
Download
Description
PWR XFMR LAMINATED 7VA CHAS MT
Stock
7,740
In Stock :
7,740

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Signal Transformer
Product Category :
Power Transformers
Type :
Laminated Core
Reach Compliance Code :
Unknown
Voltage - Secondary (Full Load) :
5V 12V
Series :
MT
Secondary Winding(s) :
Dual
Height Seated (Max) :
57.80mm
Mount :
Chassis Mount
Lead Free :
Lead Free
Weight :
1.7lbs 771.1g
Voltage - Isolation :
2500Vrms
VA Rating :
7 VA
Moisture Sensitivity Level (MSL) :
Not Applicable
Physical Dimension :
93.6mm X 46mm X 57.2mm
Size / Dimension :
93.70mm Lx49.20mm W
Center Tap :
yes
Published :
2016
Mounting Type :
Chassis Mount
Current - Output (Max) :
2.8A 350mA
Max Power Dissipation :
7W
ECCN Code :
EAR99
Height :
57.2mm
Termination Style :
Solder, Quick Connect
Voltage - Primary :
115V
HTS Code :
8504.31.40.35
Approval Agency :
UL; CSA
Width :
46mm
Primary Winding(s) :
Single
RoHS Status :
ROHS3 Compliant
Additional Feature :
OTHER SECONDARY IS WITH CENTER TAP
Length :
93.6mm
Factory Lead Time :
18 Weeks
Power - Max :
7VA
Termination :
Solder
Max Output Current :
2.8A
Datasheets
MT-7-12
Introducing Power Transformers Signal Transformer MT-7-12 from Chip IC,where excellence meets affordability. This product stands out with its Type:Laminated Core, Mounting Type:Chassis Mount, MT-7-12 pinout, MT-7-12 datasheet PDF, MT-7-12 amp .Beyond Power Transformers Signal Transformer MT-7-12 ,we also offer MGPWT-00096-P, 3FS-228, 3FS-236, Our vast inventory has you covered. Contact us now for immediate solutions.

Signal Transformer MT-7-12


MT-7-12 datasheet pdf and Power Transformers product details from Signal Transformer stock available at
