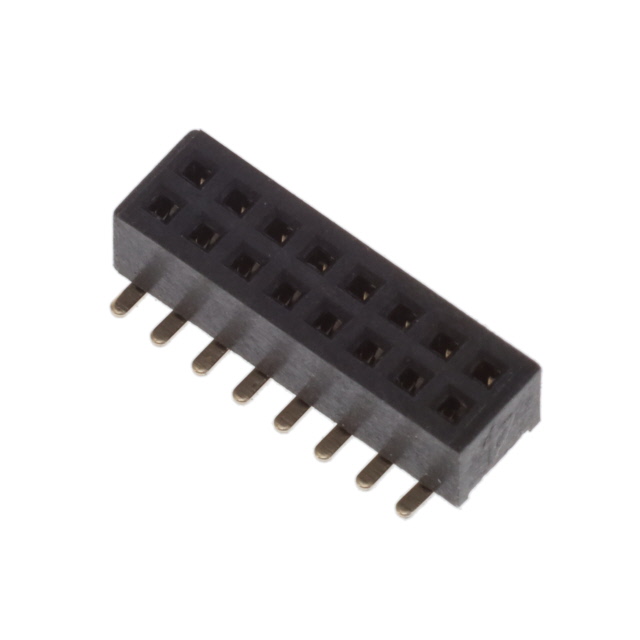

MRS2-16-U-SMT
- Mfr.Part #
- MRS2-16-U-SMT
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- RECEPTACLE STRIP, 16P 1.0MM PITC
- Stock
- 101
- In Stock :
- 101
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Receptacles, Female Sockets
- Mating Contact Pitch :
- 0.039 inch
- Insulation Height :
- 0.089 2.26mm
- Insulation Resistance :
- 500000000Ohm
- Series :
- MRS2
- Number of Positions :
- 16
- Mounting Type :
- Surface Mount
- Contact Finish - Mating :
- Gold
- Packaging :
- Tube
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Factory Lead Time :
- 9 Weeks
- Number of Positions Loaded :
- All
- Contact Material :
- Phosphor Bronze
- Number of Conductors :
- ONE
- Style :
- Board to Board
- Current Rating (Amps) :
- 1A
- Insulation Material :
- Thermoplastic
- Voltage - Rated :
- 250VAC
- Body Depth :
- 0.089 inch
- Additional Feature :
- RoHS Compliant
- Durability :
- 500 Cycles
- Contact Finish Thickness - Mating :
- Flash
- Terminal Pitch :
- 0.9906mm
- Applications :
- GENERAL PURPOSE
- Operating Temperature :
- -40°C~105°C
- Total Number of Contacts :
- 16
- Contact Resistance :
- 40mOhm
- HTS Code :
- 8536.69.40.40
- Reliability :
- COMMERCIAL
- Body Breadth :
- 0.098 inch
- Pitch - Mating :
- 0.039 1.00mm
- JESD-609 Code :
- e4
- Number Of PCB Rows :
- 2
- Connector Type :
- Header
- Row Spacing - Mating :
- 0.039 (1.00mm)
- PCB Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Push-Pull
- Reference Standard :
- UL, CSA
- Number of Rows :
- 2
- Insulation Color :
- Black
- Contact Type :
- Female Socket
- Datasheets
- MRS2-16-U-SMT
MRS2-16-U-SMT Documents

2 Rows Header Solder Phosphor Bronze Surface Mount Tube Gold Thermoplastic 16 Positions Female Socket
MRS2-16-U-SMT Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tube case is used.It belongs to the MRS2 Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.General Purpose is a possible application for the device.The device runs in -40°C~105°C Operating Temperature.
MRS2-16-U-SMT Features
MRS2 series
MRS2-16-U-SMT Applications
There are a lot of Adam Tech
MRS2-16-U-SMT Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
