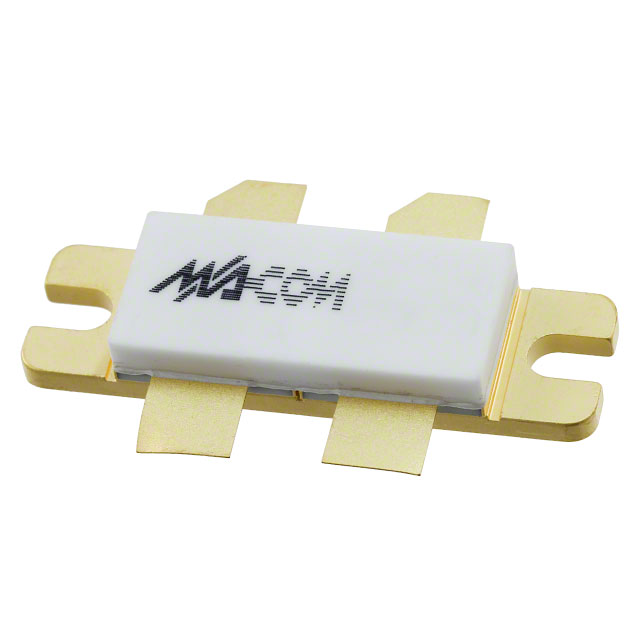

MRF176GV

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Continuous Drain Current (ID) :

16A

Drain to Source Breakdown Voltage :

125V

Published :

2001

Max Operating Temperature :

200°C

Transistor Application :

AMPLIFIER

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Current Rating :

16A

Power Dissipation-Max (Abs) :

400W

Terminal Form :

Flat

Lead Free :

Lead Free

Pbfree Code :

yes

Operating Mode :

ENHANCEMENT MODE

JESD-30 Code :

R-CDFM-F4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mount :

Screw

Qualification Status :

Not Qualified

Number of Elements :

2

Transistor Type :

2 N-Channel (Dual) Common Source

Min Operating Temperature :

-65°C

Number of Terminations :

4

Factory Lead Time :

14 Weeks

Packaging :

Tray

RoHS Status :

ROHS3 Compliant

Gain :

17dB

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Pin Count :

4

Number of Pins :

5

Package / Case :

375-04

Current - Test :

100mA

Frequency :

225MHz

Power - Output :

200W

ECCN Code :

EAR99

Voltage - Test :

50V

Gate to Source Voltage (Vgs) :

40V

Configuration :

COMMON SOURCE, 2 ELEMENTS
