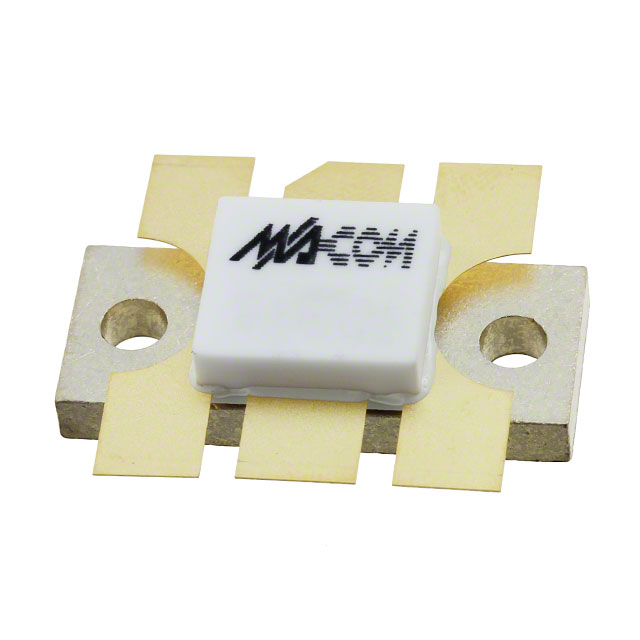

MRF175LU

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Pbfree Code :

yes

Max Operating Temperature :

200°C

Voltage - Test :

28V

Transistor Application :

AMPLIFIER

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Terminal Position :

Dual

Min Operating Temperature :

-65°C

Power - Output :

100W

Gate to Source Voltage (Vgs) :

40V

Transistor Type :

N-Channel

Published :

2009

Pin Count :

4

Max Power Dissipation :

270W

Current - Test :

100mA

Radiation Hardening :

No

Current Rating :

13A

Gain :

10dB

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Frequency :

400MHz

Operating Mode :

ENHANCEMENT MODE

Number of Elements :

1

Packaging :

Tray

Continuous Drain Current (ID) :

13A

Package / Case :

333-04

Factory Lead Time :

14 Weeks

RoHS Status :

ROHS3 Compliant

Mount :

Screw

Number of Terminations :

4

Terminal Form :

Flat

Drain to Source Voltage (Vdss) :

65V

Number of Pins :

4

Element Configuration :

Single
