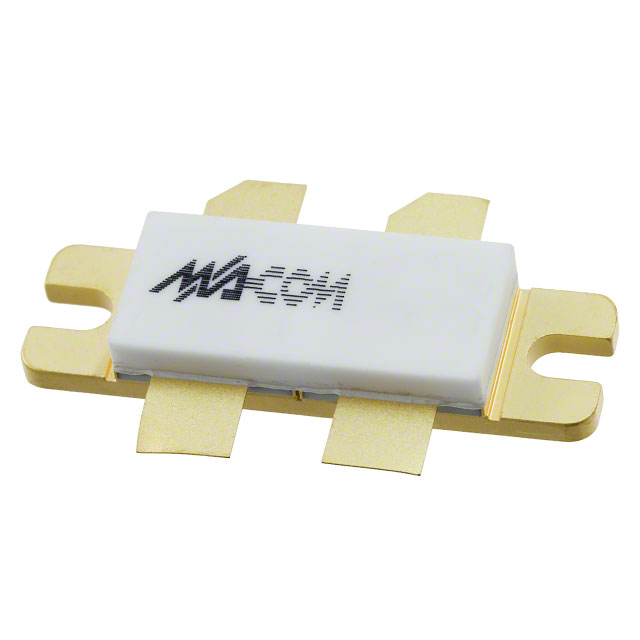

MRF175GU

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Pbfree Code :

yes

Terminal Position :

Dual

Number of Pins :

5

Current Rating (Amps) :

26A

Drain Current-Max (Abs) (ID) :

26 A

Surface Mount :

yes

Terminal Form :

Flat

Technology :

Si

Manufacturer :

MACOM

Power Dissipation-Max (Abs) :

400 W

Min Operating Temperature :

-65 °C

Gain :

14 dB

Highest Frequency Band :

ULTRA HIGH FREQUENCY BAND

Number of Terminals :

4

Power - Output :

200W

Configuration :

COMMON SOURCE, 2 ELEMENTS

Voltage Rating :

65 V

Continuous Drain Current (ID) :

26 A

Supplier Device Package :

375-04, Style 2

Product Status :

Active

Frequency :

225 MHz

RoHS :

Compliant

DS Breakdown Voltage-Min :

65 V

Polarity/Channel Type :

N-Channel

Noise Figure :

-

JESD-30 Code :

R-CDFM-F4

Reach Compliance Code :

Compliant

Transistor Application :

AMPLIFIER

Mount :

Screw

Current - Test :

100 mA

Voltage - Rated :

65 V

Output Power :

200 W

Test Current :

100 mA

Brand :

MACOM

Transistor Type :

2 N-Channel (Dual) Common Source

Package Shape :

RECTANGULAR

Subcategory :

MOSFETs

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Package :

Tray

Test Voltage :

28 V

ECCN Code :

EAR99

Max Operating Temperature :

200 °C

Gate to Source Voltage (Vgs) :

40 V

Case Connection :

SOURCE

Product Type :

RF MOSFET Transistors

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Mode :

ENHANCEMENT MODE

Number of Elements :

2

Pin Count :

4

Qualification Status :

Not Qualified

Voltage - Test :

28 V

Package / Case :

375-04

Base Product Number :

MRF175

Series :

-

Product Category :

RF MOSFET Transistors

Current Rating :

26 A

Transistor Element Material :

SILICON
