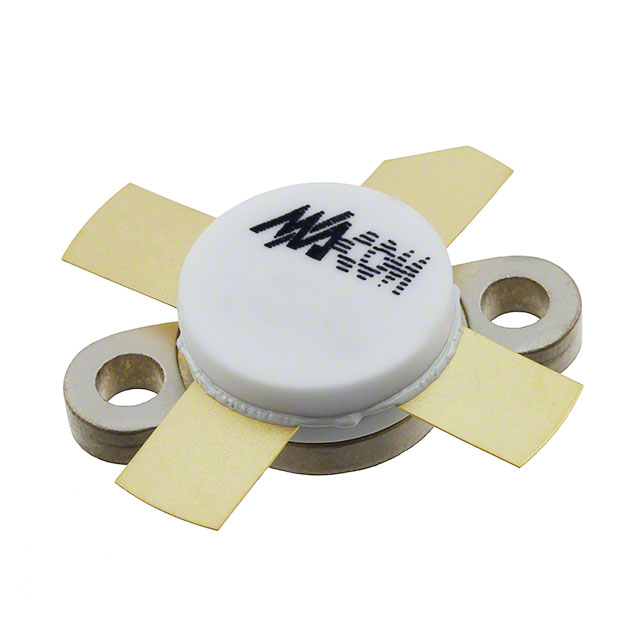

MRF174

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Number of Terminations :

4

Continuous Drain Current (ID) :

13A

Pbfree Code :

yes

Packaging :

Tray

Min Operating Temperature :

-65°C

Number of Elements :

1

DS Breakdown Voltage-Min :

65V

Number of Pins :

4

Package / Case :

211-11, Style 2

Voltage - Test :

28V

Terminal Form :

Flat

Factory Lead Time :

20 Weeks

ECCN Code :

EAR99

Transistor Type :

N-Channel

Transistor Application :

AMPLIFIER

Frequency :

150MHz

Mount :

Screw

Power - Output :

125W

Noise Figure :

3dB

Pin Count :

4

Terminal Position :

Radial

Configuration :

Single

Radiation Hardening :

No

Gate to Source Voltage (Vgs) :

40V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Current Rating :

13A

Operating Mode :

ENHANCEMENT MODE

Case Connection :

SOURCE

Published :

2009

Max Operating Temperature :

200°C

Current - Test :

2A

Voltage - Rated :

65V

RoHS Status :

ROHS3 Compliant

Max Power Dissipation :

270W

Gain :

11.8dB
