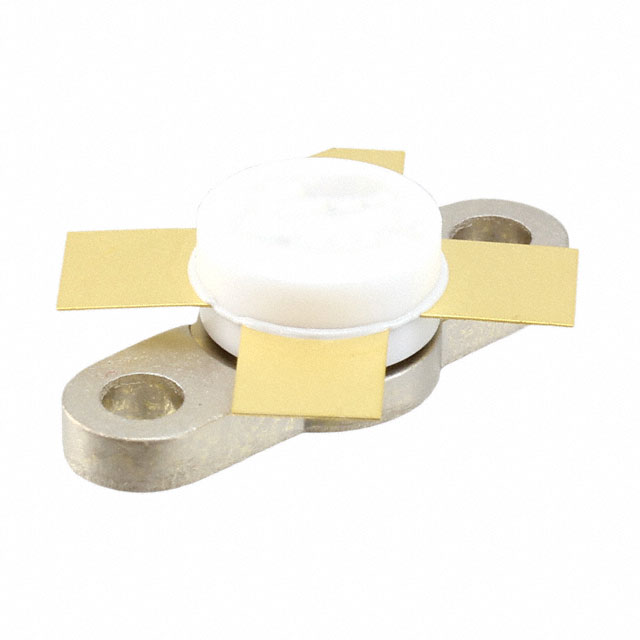

MRF171A

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Mount :

Screw

Terminal Position :

Radial

Package / Case :

211-07

Operating Mode :

ENHANCEMENT MODE

Min Operating Temperature :

-65°C

Element Configuration :

Single

Current Rating :

4.5A

Terminal Form :

Flat

Number of Elements :

1

Published :

2009

Drain to Source Voltage (Vdss) :

65V

Transistor Type :

N-Channel

Transistor Application :

AMPLIFIER

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Packaging :

Tray

Factory Lead Time :

20 Weeks

Gate to Source Voltage (Vgs) :

20V

Frequency :

30MHz~200MHz

FET Technology :

METAL-OXIDE SEMICONDUCTOR

ECCN Code :

EAR99

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Max Power Dissipation :

115W

Current - Test :

25mA

Voltage - Test :

28V

Continuous Drain Current (ID) :

4.5A

Gain :

19.5dB

Power - Output :

45W

Number of Pins :

4

Pin Count :

4

Number of Terminations :

4

Max Operating Temperature :

200°C
