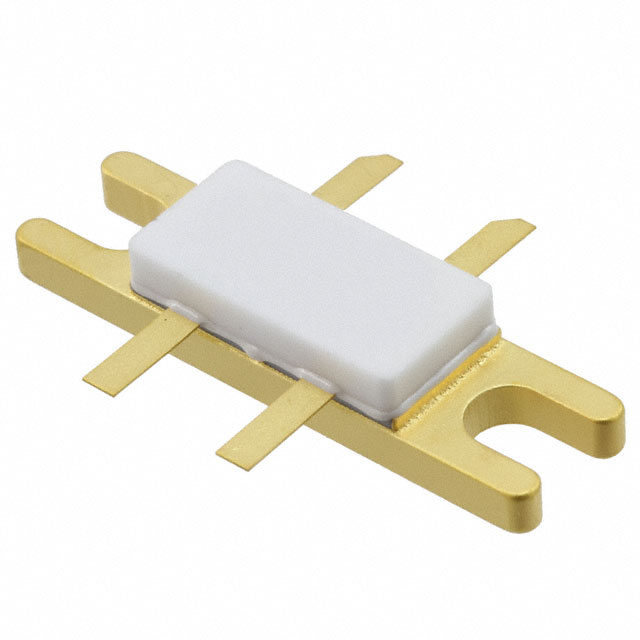

MRF166W

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Drain Current-Max (Abs) (ID) :

8A

Case Connection :

SOURCE

JESD-30 Code :

R-CDFM-F4

Operating Mode :

ENHANCEMENT MODE

Drain to Source Breakdown Voltage :

65V

Polarity/Channel Type :

N-Channel

Lead Free :

Lead Free

Number of Elements :

2

Min Operating Temperature :

-65°C

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Mount :

Screw

Number of Pins :

5

Qualification Status :

Not Qualified

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Configuration :

COMMON SOURCE, 2 ELEMENTS

RoHS Status :

RoHS Compliant

Current - Test :

100mA

Voltage - Rated :

65V

Power - Output :

40W

Max Operating Temperature :

200°C

Transistor Application :

AMPLIFIER

Continuous Drain Current (ID) :

8A

Number of Terminations :

4

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Gate to Source Voltage (Vgs) :

20V

Pbfree Code :

yes

Terminal Position :

Dual

ECCN Code :

EAR99

Frequency :

500MHz

Gain :

16 dB

Terminal Form :

Flat

Pin Count :

4

Current Rating :

8A

Voltage - Test :

28V
