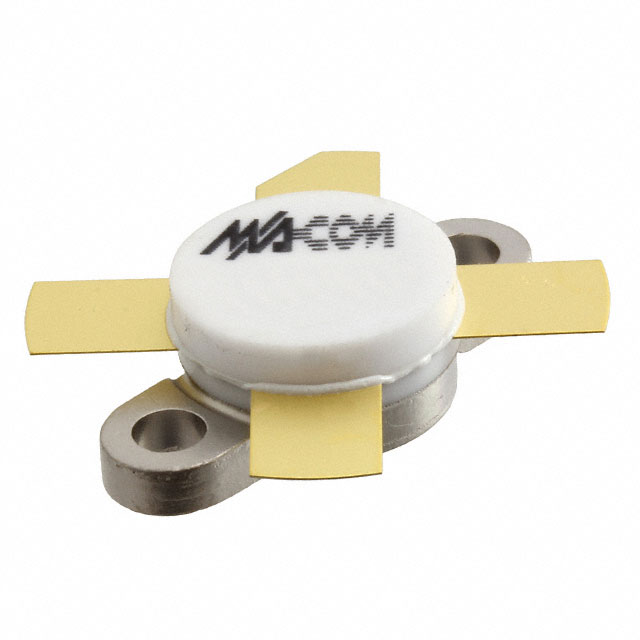

MRF151A

Manufacturer :

MACOM Technology Solutions

Product Category :

Transistors - FETs, MOSFETs - RF

Gate to Source Voltage (Vgs) :

40V

Current Rating :

16A

Voltage - Test :

50V

Operating Mode :

ENHANCEMENT MODE

ECCN Code :

EAR99

Max Power Dissipation :

416W

Terminal Position :

Radial

Package / Case :

P-244

Terminal Form :

Flat

Min Operating Temperature :

-65°C

Number of Elements :

1

Transistor Type :

N-Channel

Transistor Application :

AMPLIFIER

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Power - Output :

150W

Mount :

Screw

Additional Feature :

High Reliability

Frequency :

30MHz~175MHz

Radiation Hardening :

No

Max Operating Temperature :

200°C

Gain :

13dB ~ 22dB

Packaging :

Tray

RoHS Status :

ROHS3 Compliant

Drain to Source Voltage (Vdss) :

125V

Continuous Drain Current (ID) :

16A

Pin Count :

4

Current - Test :

250mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Element Configuration :

Single

Factory Lead Time :

14 Weeks

Published :

2009

Number of Terminations :

4

Number of Pins :

4
